Weidmuller 1963590000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

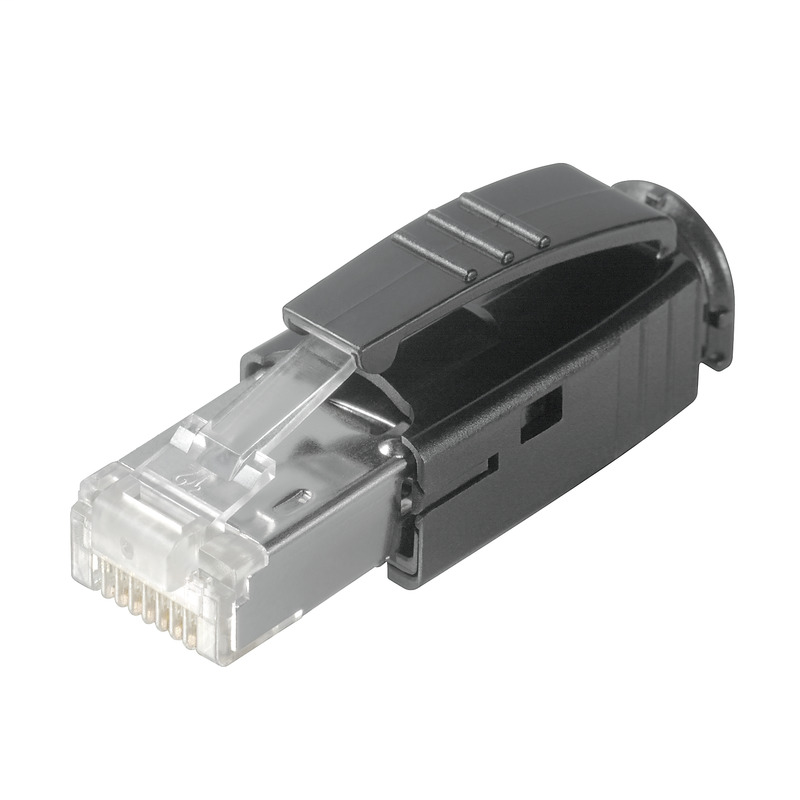

RJ45 crimp plug, Plug with bending protection sleeve in black, Cat.6A / Class EA (ISO/IEC 11801 2010)IE-PS-RJ45-TH-BK
Weidmuller 1963590000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
- UNSPSC
- 30-21-18-10
Dimensions And Weights
- Net weight
- 10.2 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Current-carrying capacity at 50 °C
- 1 A
- Dielectric strength, contact / contact
- ≤ 1000 V DC
- Dielectric strength, contact / shield
- ≤ 1500 V DC
- Insulation strength
- 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Bending protection sleeve material
- Polycarbonate PC, UL 94 V-0
- Cable pull-out force, min.
- 89 N
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- Miscellaneous
- Conductor connection cross-section, flexible (AWG)
- AWG 27...AWG 24
- Conductor connection cross-section, solid (AWG)
- AWG 27...AWG 24
- Configuration
- Connects piercing contacts and shielded connections in one step, retro-fit for kink-prevention sleeves, Multi-port compatible
- Connection 1
- RJ45
- Connection 2
- IDC
- Connection diameter, flexible
- 0.46...0.61 mm
- Connection diameter, solid
- 0.36...0.51 mm
- Contact material
- Phosphorus bronze
- Contact surface
- Gold-plated
- Description of article
- Plug with bending protection sleeve in black
- Housing main material
- Brass, PC UL 94 V0
- Insulation cross-section, max.
- 1.05 mm
- Insulation cross-section, min.
- 0.85 mm
- Material insulator
- Polycarbonate PC, UL 94 V-0
- MICE classification C
- C1
- MICE classification E
- E3
- MICE classification I
- I1
- MICE classification M
- M1
- Plugging cycles
- 750
- Protection degree
- IP20
- Sheath diameter, max.
- 7.3 mm
- Sheath diameter, min.
- 5 mm
- Shielding
- 360° all-round enclosure
- Shielding material
- 0.5 mm brass, 2 µm nickel
Standards
- Certificate No. (cURus)
- E316369
- Connector standard
- IEC 60603-7-51
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
