Weidmuller 1963160000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

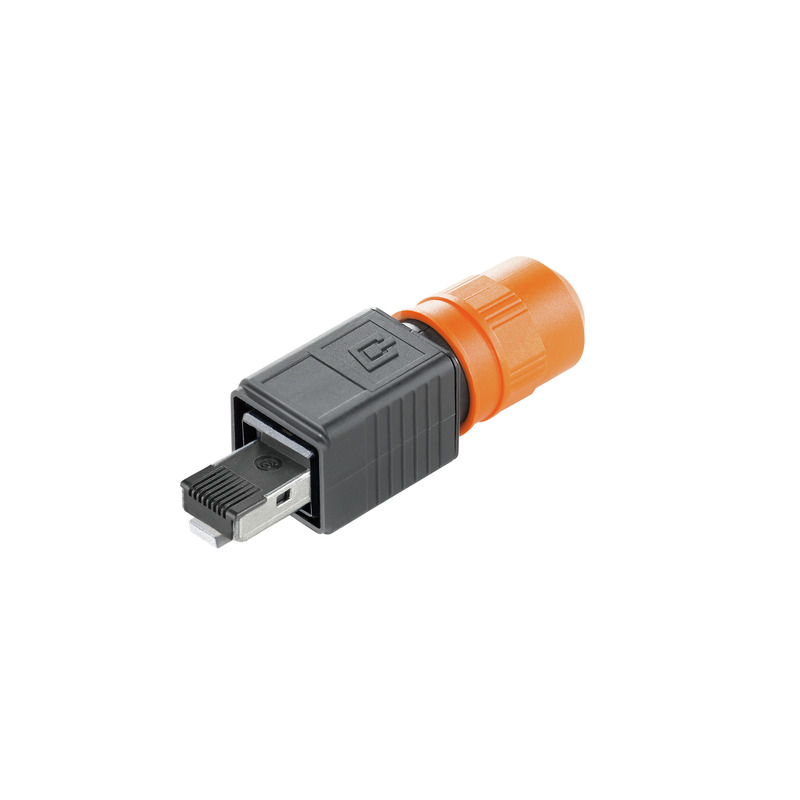

RJ45 plug, no tools required, Version 4, Cat.6A / Class EA (ISO/IEC 11801 2010)IE-PS-V04P-RJ45-FH
Weidmuller 1963160000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
- UNSPSC
- 30-21-18-10
Dimensions And Weights
- Net weight
- 30.485 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Ability to reconnect
- ≥ 10 cycles (for the same or larger cross-section)
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- black
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Connection 1
- RJ45
- Connection 2
- IDC
- Connection diameter, flexible
- 0.48...0.76 mm
- Connection diameter, solid
- 0.4...0.64 mm
- Contact surface
- Gold over nickel
- Description of article
- Version 4
- Housing main material
- PA UL 94 V0
- Insulation cross-section, max.
- 1.6 mm
- Insulation cross-section, min.
- 0.85 mm
- MICE classification C
- C1
- MICE classification E
- E3
- MICE classification I
- I3
- MICE classification M
- M3
- Plugging cycles
- 750
- Protection degree
- IP67
- Sheath diameter, max.
- 10 mm
- Sheath diameter, min.
- 5 mm
- Shielding
- 360° all-round enclosure
- Wiring
- EIA/TIA T568 A, EIA/TIA T568 B, PROFINET
Standards
- Application-specific communication cable facilities
- PROFINET installation instructions
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 61076-3-106 Var. 4, IEC 60603-7-51
- Generic communication cable facilities
- ANSI / TIA / EIA-568-B.2-10, DIN EN 61918 Draft 02.2007, EN 50173-1:2007, ISO / IEC 11801:2002, ISO / IEC 24702:2006
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
