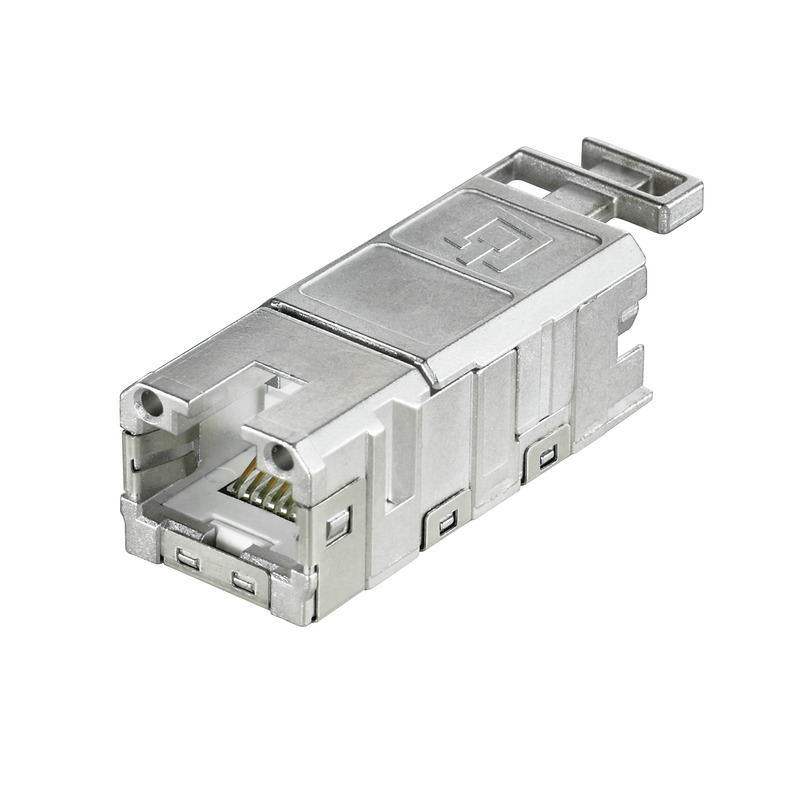

Weidmuller 1962850000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RJ45 insert socket, Connector for base, TIA-568AIE-BI-RJ45-FJ-A
Weidmuller 1962850000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Net weight
- 16 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Current-carrying capacity at 50 °C
- 1 A
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Dielectric strength, contact / shield
- ≥ 1500 V DC
- Insulation strength
- 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Ability to reconnect
- ≥ 10 cycles for AWG 23-26, ≥ 4 cycles for AWG 22
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- Miscellaneous
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Connection 1
- RJ45
- Connection 2
- IDC
- Connection diameter, flexible
- 0.48...0.76 mm
- Connection diameter, solid
- 0.4...0.64 mm
- Contact material
- Spring steel, Ni 1.2 µm
- Contact surface
- Gold over nickel, Au ≥ 0.8 µm
- Description of article
- Connector for base
- Housing main material
- Zinc diecast
- Humidity
- 0...93 % rel. humidity
- Insulation cross-section, max.
- 1.6 mm
- Insulation cross-section, min.
- 0.85 mm
- Plugging cycles
- 750
- Protection degree
- IP67 with housing
- Shielding
- 360° all-round enclosure
- Shock resistance acc. to IEC 60512-4
- 250 ms-2
- Speed
- 10 GBit/s
- Vibration resistance acc. to IEC 60512-4
- 50 ms-2 sinusoidal (9…500 Hz)
- Wiring
- TIA-568A
Standards
- Application-specific communication cable facilities
- PROFINET installation instructions
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 60603-7-51
- Generic communication cable facilities
- ANSI / TIA / EIA-568-B.2-10, DIN EN 61918 Draft 02.2007, EN 50173-1:2007, ISO / IEC 11801:2002, ISO / IEC 24702:2006
- IP protection classes
- IEC 60529
- UL standard for communication accessories
- UL 1863
Temperatures
- Humidity
- 0...93 % rel. humidity
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
