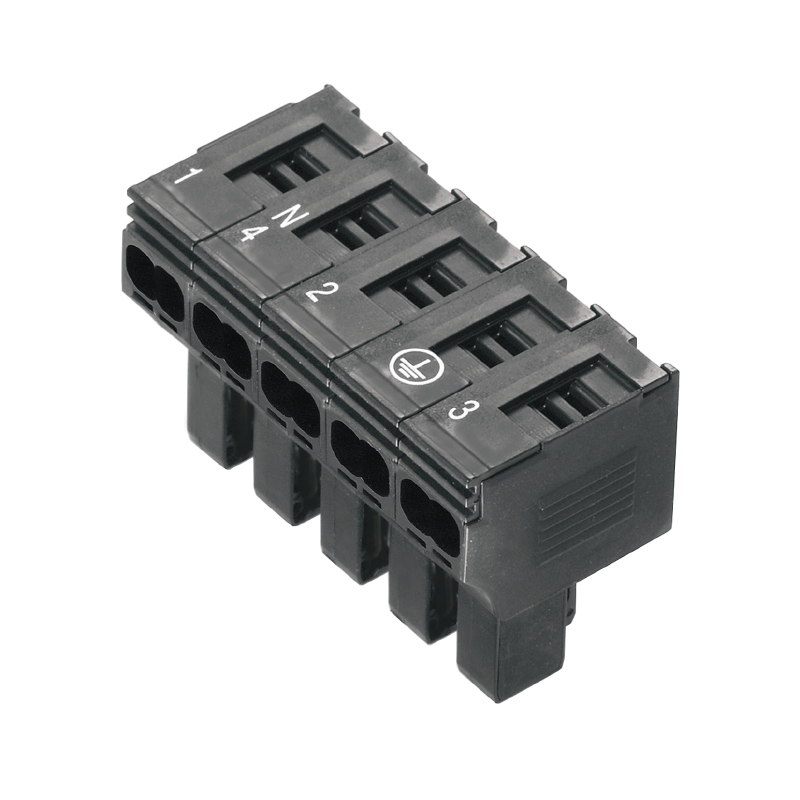

Weidmuller 1952130000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FieldPower®, Plug-in connector, PUSH IN, 0.5 mm² - 4 mm², Number of poles: 5PTDS 4
Weidmuller 1952130000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E60693
Clamping Capacity, Push-In Connection
- Blade size, PUSH IN connection
- 3.0 x 0.5 mm
- Clamping range, max. Push-In connection
- 4 mm²
- Clamping range, min. Push-In connection
- 0.5 mm²
- Cross-section for connected wire, flexible, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, PUSH IN connection, solid, max.
- 4 mm²
- Cross-section for connected wire PUSH IN connection, solid, min.
- 0.5 mm²
- Finely-stranded flexible, max. PUSH IN connection
- 4 mm²
- Finely-stranded flexible, min. PUSH IN connection
- 0.5 mm²
- Number of poles
- 5
- Stripping length, PUSH IN connection
- 12 mm
- Wire connection cross section, stranded, PUSH IN connection, max.
- 4 mm²
- Wire connection cross section, stranded, PUSH IN connection, min.
- 0.5 mm²
Classifications
- eClass 10.0
- 27-44-02-92
- eClass 9.0
- 27-44-02-92
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC002943
- ETIM 7.0
- EC002943
- UNSPSC
- 30-21-18-10
Dimensions And Weights
- Height
- 36.15 mm
- Height (inches)
- 1.423 inch
- Length
- 27.3 mm
- Length (inches)
- 1.075 inch
- Net weight
- 45.9 g
- Width
- 55.45 mm
- Width (inches)
- 2.183 inch
General Information #96 Connectors
- Can be coded
- Yes, Coded on PE
- Colour of insulating material
- black
- Conductor outlet direction
- 90°
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- lockable
- Yes
- Number of connections / pole
- 2
- Number of poles
- 5
- Plug insulation material
- PA GF
- Test point
- 2 mm
- Type of mounting
- Plugged
- UL 94 flammability rating
- V-0
- Wire connection method
- PUSH IN
Rated Data Acc. To Iec
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 690 V
- Standards
- UL 1059, IEC 60947-7-1
Rated Data Acc. To Ul
- Rated current (Use group D / UL 1059)
- 20 A
- Rated voltage (Use group D / UL 1059)
- 600 V
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 16
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
