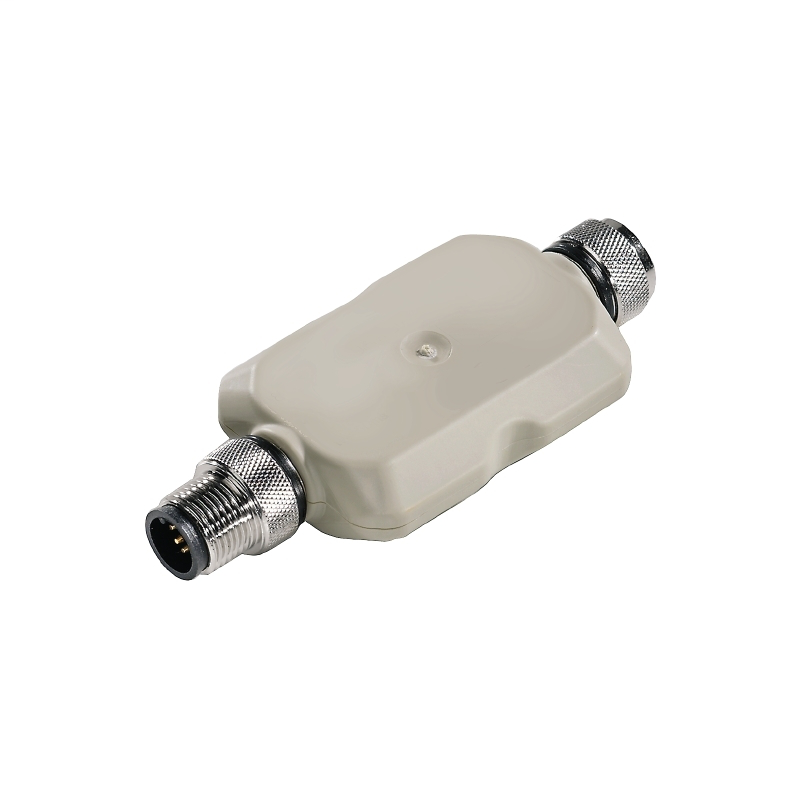

Weidmuller 1915220000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1915220000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
Dimensions And Weights
- Height
- 36 mm
- Height (inches)
- 1.417 inch
- Length
- 86 mm
- Length (inches)
- 3.386 inch
- Net weight
- 41.8 g
- Width
- 14.4 mm
- Width (inches)
- 0.567 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Technical Data Jackpac
- Comparative Tracking Index (CTI)
- ≥ 200
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Contact to terminal rail
- No
- Cross-connection
- No
- Encapsulation option
- Yes
- Insulating material
- PBT GF
- Insulating material group
- IIIa
- Max. relative humidity during storage
- 80 %
- Number of connection levels
- 1
- Number of connections
- 2
- Number of PCBs per module
- 1
- PCB thickness
- 1 mm
- Power loss, max.
- 0.4 W
- Tolerance for the PCB shape
- ±0.1 mm
- Type of contact to PCB
- Solder connection, via wire
- UL 94 flammability rating
- V-0
Temperatures
- Operating temperature, max.
- 90 °C
- Operating temperature, min.
- -20 °C
