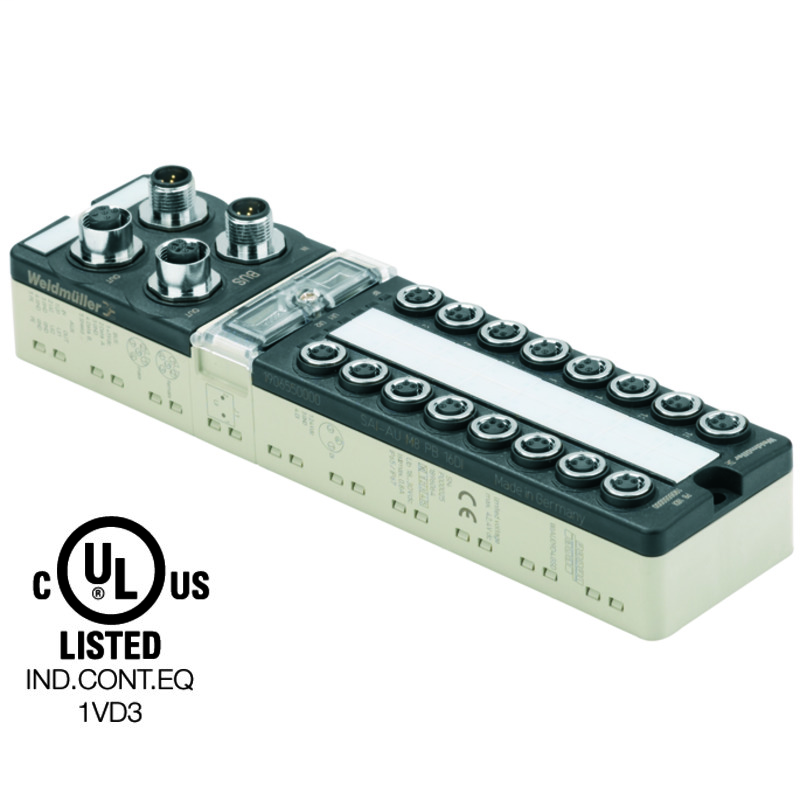

Weidmuller 1906680000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAI Active, Sensor-actuator active distributor, CANopen, Complete modulSAI-AU M8 CAN 16DI
Weidmuller 1906680000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-24-26-05
- eClass 9.0
- 27-24-26-05
- eClass 9.1
- 27-24-26-90
- ETIM 6.0
- EC001601
- ETIM 7.0
- EC001601
- UNSPSC
- 43-17-27-10
Connections
- Fieldbus (BUS-IN)
- 1x M12 plug 5-pole, A-coded
- Fieldbus (BUS-OUT)
- 1x M12 female 5-pole, A-coded
- I/O connections
- 16x M8 female 3-pole
- Supply voltage (AUX-IN)
- 1x M12 plug 5-pole, A-coded
- Supply voltage (AUX-OUT)
- 1x M12 female 5-pole, A-coded
Digital Inputs
- Diagnosis indication
- red
- Input current, high
- 2 mA to 15 mA in accordance with EN 61131-2 Type 1
- Input current, low
- < 15 mA in accordance with EN 61131-2 Type 1
- Input filter
- 3 ms
- Input voltage, high
- >15 V in accordance with EN 61131-2 Type 1
- Input voltage, low
- <5 V in accordance with EN 61131-2 Type 1
- Permitted input voltage
- -30 V to +30 V (protected against polarity reversal)
- Separation of potentials to module electronics
- none
Digital Outputs
- Diagnosis indication
- red
Dimensions And Weights
- Net weight
- 459 g
- Width
- 54 mm
- Width (inches)
- 2.126 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Certificate
- CE, cULus
- Earth
- < 400 g
- Housing main material
- Pocan, PBT
- L x W x H
- 210 mm / 54 mm / 32 mm
- Protection degree
- IP67
- UL 94 flammability rating
- V-0
Supply Voltage
- Contact load
- Per PIN max. 4 A
- Current consumption module
- 70 mA typically
- Limits
- 18 V DC ... 30 V DC
- Max. total current module
- 8 A
- Operating voltage
- 24 V
- Reverse polarity protection
- Yes
System Data
- Fieldbus interface
- RS 485
- Module type
- Complete modul
Temperatures
- Operating temperature
- 0 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature
- -25 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -25 °C
