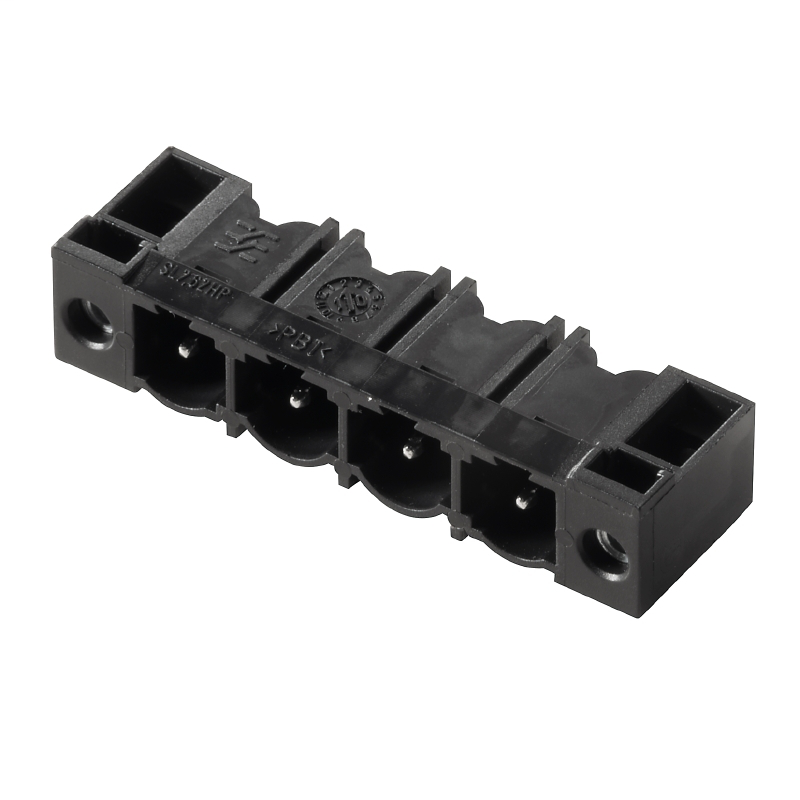

Weidmuller 1901440000

Approvals

• Approvals
  • cURus
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637

Dimensions And Weights

• Depth
  • 11.8 mm
• Depth (inches)
  • 0.465 inch
• Height
  • 11.6 mm
• Height (inches)
  • 0.457 inch
• Height of lowest version
  • 8.4 mm
• Net weight
  • 2.843 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• GWFI
  • 960 °C
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 1-3 µm Ni / 2-4 µm Sn / 1.7-2.3 µm Au
• Layer structure of solder connection
  • 1-3 µm Ni / 2-4 µm Sn matt
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Packing

• Packaging
  • Box
• VPE height
  • 45 mm
• VPE length
  • 230 mm
• VPE width
  • 110 mm

Rated Data Acc. To Iec

• Clearance, min.
  • 6.5 mm
• Creepage distance, min.
  • 8.1 mm
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Clearance distance, min.
  • 6.5 mm
• Creepage distance, min.
  • 11.2 mm
• Institute (cURus)
  • cURus
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Specifications

• L1 in inches
  • 0.9 inch
• L1 in mm
  • 22.86 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 4
• Outgoing elbow
  • 90°
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.3 inch
• Pitch in mm (P)
  • 7.62 mm
• Product family
  • OMNIMATE Power - series BL/SL 7.62HP
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 1.0 x 1.0 mm
• Solder pin length (l)
  • 3.2 mm
• Tightening torque for screw flange, max.
  • 0.25 Nm
• Tightening torque for screw flange, min.
  • 0.15 Nm
• Type of connection
  • Board connection
