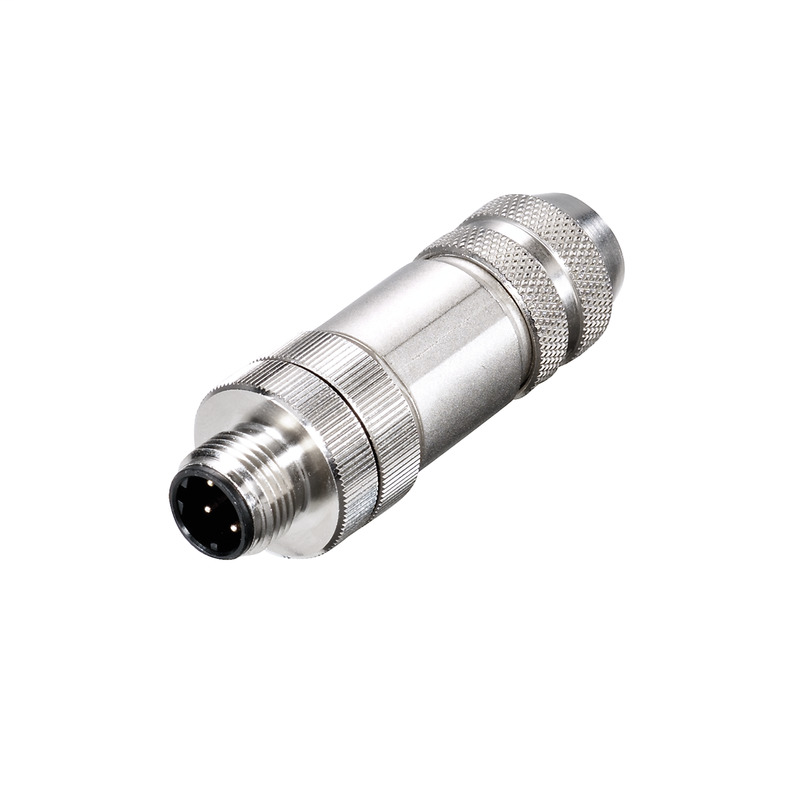

Weidmuller 1892120000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Plugs prefabricated to customer spec., M12, pin, straightSAISM-4/8S-M12-4P D-COD
Weidmuller 1892120000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E307231
Classifications
- eClass 10.0
- 27-44-01-02
- eClass 9.0
- 27-44-01-02
- eClass 9.1
- 27-44-01-03
- ETIM 6.0
- EC002062
- ETIM 7.0
- EC002635
- UNSPSC
- 30-21-18-10
Dimensions And Weights
- Net weight
- 44.68 g
Electrical Properties
- Insulation strength
- 108 Ω
- Rated voltage
- 250 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Info
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Connection thread
- M12
- Contact surface
- Gold-plated
- Housing main material
- CuZn
- Number of poles
- 4
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Sheath diameter, max.
- 8 mm
- Sheath diameter, min.
- 6 mm
Standards
- Certificate No. (cURus)
- E307231
- Connector standard
- IEC 61076-2-101
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable diameter, min.
- 6 mm
- Cable glands
- PG 9
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Coding
- D
- Connection cross-section, max.
- 0.75 mm²
- Connection cross-section, min.
- 0.14 mm²
- Contact surface
- Gold-plated
- Housing main material
- CuZn
- Insulation strength
- 108 Ω
- Number of poles
- 4
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Protection degree
- IP67
- Rated current
- 4 A
- Rated voltage
- 250 V
- Shield connection
- Yes
- Temperature range of housing
- -40 … +85 ° C
- Threaded ring material
- Diecast zinc
- Type of connection
- Screw connection
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Operating temperature range, min.
- -25 °C
