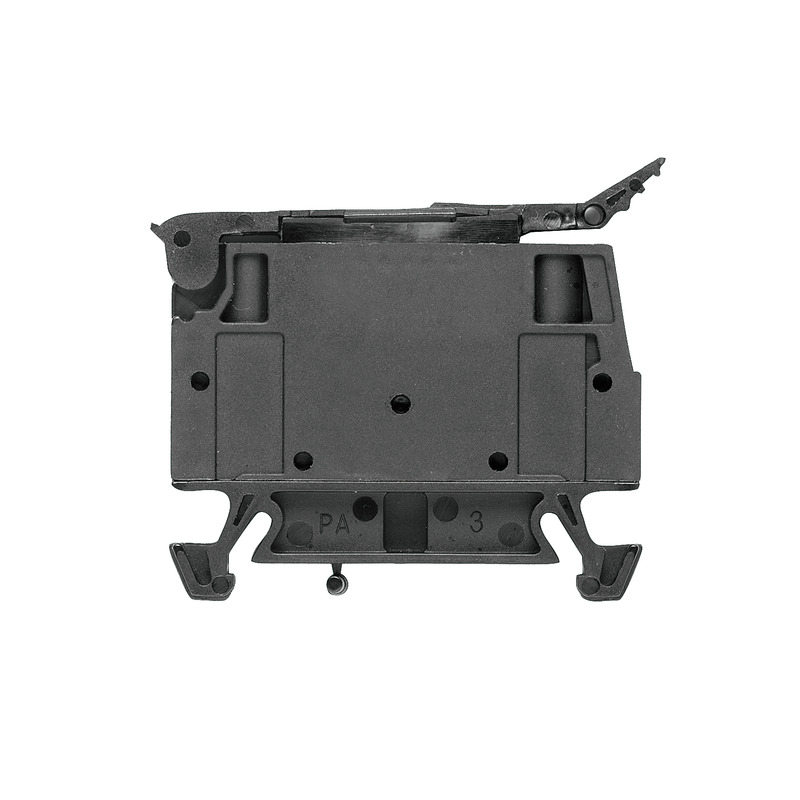

Weidmuller 1886550000

2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)

• Cross-section for connected wire, solid, two clampable wires, max.
  • 1.5 mm²
• Cross-section for connected wire, solid, two clampable wires, min.
  • 0.5 mm²
• Wire connection cross section, finely stranded, two clampable wires, min.
  • 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
  • 1.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
  • 0.5 mm²
• Wire cross-section, finely stranded, two clampable wires, max.
  • 1.5 mm²

Additional Technical Data

• Number of similar terminals
  • 1
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, cURus, EAC, LLOYDSREG
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-16
• eClass 9.0
  • 27-14-11-16
• eClass 9.1
  • 27-14-11-16
• ETIM 6.0
  • EC000899
• ETIM 7.0
  • EC000899
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping screw
  • M 2.5
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 1.5 mm²
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • A3
• Number of connections
  • 2
• Stripping length
  • 8 mm
• Tightening torque, max.
  • 0.4 Nm
• Tightening torque, min.
  • 0.4 Nm
• Torque level with DMS electric screwdriver
  • 2
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 22
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 4 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 200039-1575489
• Wire cross section max. (CSA)
  • 12 AWG
• Wire cross section min. (CSA)
  • 30 AWG

Dimensions

• TS 35 offset
  • 25 mm

Dimensions And Weights

• Depth
  • 42.5 mm
• Depth (inches)
  • 1.673 inch
• Height
  • 50.7 mm
• Height (inches)
  • 1.996 inch
• Net weight
  • 11.78 g
• Width
  • 8 mm
• Width (inches)
  • 0.315 inch

Display Element

• Operating voltage for display, max.
  • 250 V
• Operating voltage for display, min.
  • 140 V
• Type of voltage for indicator
  • AC/DC

Fuse Terminals

• Cartridge fuse
  • G-Si. 5 x 20
• Display
  • LED
• Fuse holder (cartridge holder)
  • for screw fixing
• Operating voltage, max.
  • 250 V
• Power loss for overload and short-circuit protection for a composite arrangement
  • 1.6 W at 6.3 A @ 23°C
• Power loss for overload and short-circuit protection for an individual arrangement
  • 1.6 W at 6.3 A @ 34°C
• Power loss for short-circuit protection only for a composite arrangement
  • 2.5 W at 6.3 A @ 47°C
• Power loss for short-circuit protection only for an individual arrangement
  • 4.0 W at 6.3 A @ 63°C
• Type of voltage for indicator
  • AC/DC

Material Data

• Colour
  • black
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Rating Data

• Current at maximum wires
  • 6.3 A
• Power loss in accordance with IEC 60947-7-x
  • 1.02 W
• Rated cross-section
  • 4 mm²
• Rated current
  • 6.3 A
• Rated voltage
  • 250 V
• Rated voltage to adjoining terminal
  • 500 V
• Standards
  • IEC 60947-7-3
• Volume resistance according to IEC 60947-7-x
  • 1 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • No
• Levels cross-connected internally
  • No
• N-function
  • No
• Number of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Rail
  • TS 35
• Version
  • Screw connection, Fuse isolator, with LED, in closed state

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Continuous operating temp., min.
  • -50 °C
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (cURus)
  • E60693
• Conductor size Factory wiring max. (cURus)
  • 12 AWG
• Conductor size Factory wiring min. (cURus)
  • 30 AWG
• Conductor size Field wiring max. (cURus)
  • 12 AWG
• Conductor size Field wiring min. (cURus)
  • 30 AWG
