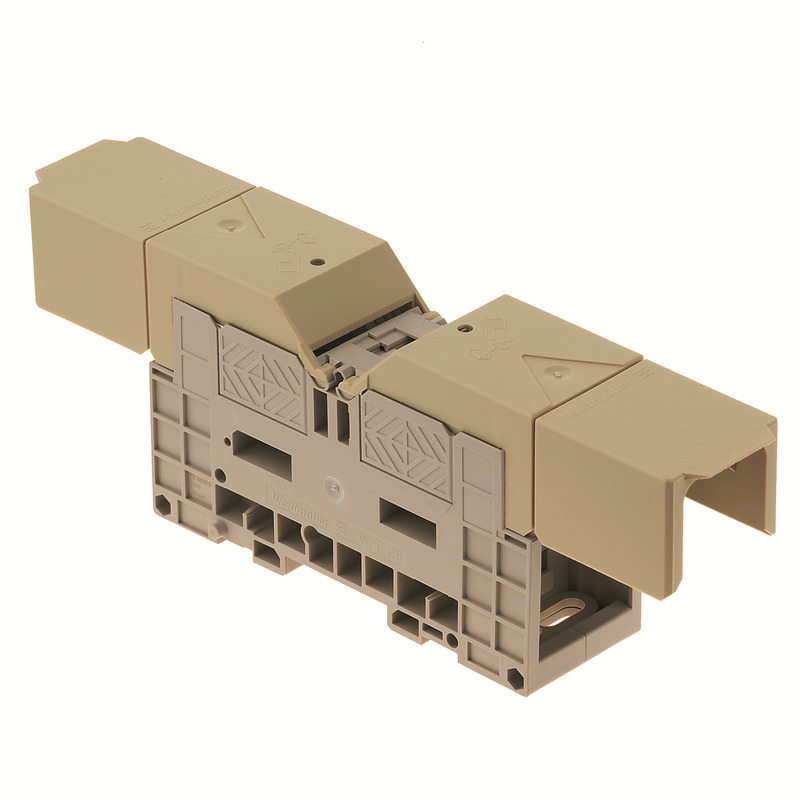

Weidmuller 1878650000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 300 mm², Threaded stud connectionWFF 300/AH O.PS
Weidmuller 1878650000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Open sides
- closed
Approvals
- Approvals
- CE, CURUSEX, EAC, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- 2 x cable lugs DIN 46 234
- 25 to 240 mm²
- 2 x cable lugs DIN 46 235
- 50...240 mm²
- Cable lug to DIN 46234
- 25...240 mm²
- Cable lug to DIN 46235
- 50...300 mm²
- Clamping range, max.
- 300 mm²
- Clamping range, min.
- 25 mm²
- Number of connections
- 2
- Tightening torque, max.
- 60 Nm
- Tightening torque, min.
- 25 Nm
- Type of connection
- Threaded stud connection
Dimensions And Weights
- Depth
- 85.5 mm
- Depth (inches)
- 3.366 inch
- Depth including DIN rail
- 94 mm
- Height
- 163 mm
- Height (inches)
- 6.417 inch
- Net weight
- 673.333 g
- Width
- 55 mm
- Width (inches)
- 2.165 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 16.64 W
- Rated cross-section
- 300 mm²
- Volume resistance according to IEC 60947-7-x
- 0.06 mΩ
Safety Note
- Safety notice
- Safety Information
Stud Connection
- 2 x cable lugs DIN 46 234
- 25 to 240 mm²
- 2 x cable lugs DIN 46 235
- 50...240 mm²
- Cable lug to DIN 46234
- 25...240 mm²
- Cable lug to DIN 46235
- 50...300 mm²
- Tightening torque, max.
- 60 Nm
- Tightening torque, min.
- 25 Nm
System Specifications
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- PE connection
- No
- Rail
- TS 35
Temperatures
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 600 kcmil
- Conductor size Factory wiring min. (UR)
- 6 AWG
- Conductor size Field wiring max. (UR)
- 600 kcmil
- Conductor size Field wiring min. (UR)
- 6 AWG
- Current size C (UR)
- 500 A
- Voltage size C (UR)
- 1000 V
