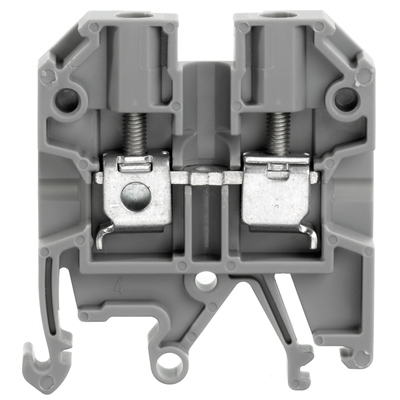

Weidmuller 1853950000

Additional Technical Data

• Explosion-tested version
  • No
• Number of similar terminals
  • 1
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE
  • IECEXKEM
  • EAC
  • CSA
  • KEMAATEX
  • UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 5.1
  • 27-14-11-20
• eClass 6.2
  • 27-14-11-20
• eClass 7.1
  • 27-14-11-20
• eClass 8.1
  • 27-14-11-20
• eClass 9.0
  • 27-14-11-20
• eClass 9.1
  • 27-14-11-20
• ETIM 3.0
  • EC000897
• ETIM 4.0
  • EC000897
• ETIM 5.0
  • EC000897
• ETIM 6.0
  • EC000897
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, rated connection, max.
  • 6 mm²
• Clamping range, rated connection, min.
  • 0.13 mm²
• Clamping screw
  • M 3
• Connection direction
  • on side
• Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
  • 0.5 mm²
• Gauge to IEC 60947-1
  • A4
• Number of connections
  • 2
• Stripping length
  • 12 mm
• Tightening torque, max.
  • 1 Nm
• Tightening torque, min.
  • 0.5 Nm
• Torque level with DMS electric screwdriver
  • 2
• Twin wire-end ferrules, max.
  • 2.5 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 10
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
  • 4 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
  • 4 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
  • 0.5 mm²
• Wire connection cross section, solid core max. rated connection
  • 6 mm²
• Wire connection cross section, solid core, min. rated connection
  • 0.5 mm²
• Wire connection cross section, stranded, rated connection, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 12400-129
• Current size C (CSA)
  • 36 A
• Voltage size C (CSA)
  • 600 V
• Wire cross section max. (CSA)
  • 10 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 47.5 mm
• Depth (inches)
  • 1.87 inch
• Height
  • 42 mm
• Height (inches)
  • 1.654 inch
• Net weight
  • 9.38 g
• Width
  • 6.5 mm
• Width (inches)
  • 0.256 inch

General Ordering Data

• Alternative product
  • 1037800000
• Available until
  • 2018-12-31
• Delivery status
  • This article will no longer be available in the future.
• GTIN (EAN)
  • 4032248389421
• Order No.
  • 1853950000
• Qty.
  • 100 pc(s).
• Type
  • SAK 4/EN GR 7042
• Version
  • SAK Series, Feed-through terminal, Rated cross-section: 4 mm², Screw connection

Material Data

• Colour
  • Pebble grey
• Material
  • PA 66
• UL 94 flammability rating
  • V-2

Product Information

• Descriptive text technical data
  • With twin ferrules ZH 0.5 to ZH 2.5, rated voltage is 690 V.

Rating Data

• ATEX certificate
  • KEMA97ATEX1798U_e.pdf
  • IECEXKEM06.0014U
• Certificate No. (ATEX)
  • KEMA97ATEX1798U
• Certificate No. (IECEX)
  • IECEXKEM06.0014U
• Current (ATEX)
  • 28 A
• Current at maximum wires
  • 41 A
• Current (IECEX)
  • 28 A
• Ex 2014/34/EU label
  • II 2 G D
• IEC Ex certificate
  • IECEXKEM06.0014U_e.pdf
• Marking EN 60079-7
  • Ex e II
• Max. voltage (ATEX)
  • 690 V
• Max. voltage (IECEX)
  • 690 V
• Operating temperature range
  • For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Pollution severity
  • 3
• Rated cross-section
  • 4 mm²
• Rated current
  • 32 A
• Rated impulse withstand voltage
  • 8 kV
• Rated voltage
  • 800 V
• Standards
  • IEC 60947-7-1
• Voltage, cross-connection
  • CrossConnectionGuide.pdf
• Volume resistance according to IEC 60947-7-x
  • 1 mΩ
• Wire cross section max. (ATEX)
  • 4 mm²
• Wire cross section max. (IECEX)
  • 4 mm²

Rating Data Iecex/Atex

• ATEX certificate
  • IECEXKEM06.0014U
  • KEMA97ATEX1798U_e.pdf
• Certificate No. (ATEX)
  • KEMA97ATEX1798U
• Certificate No. (IECEX)
  • IECEXKEM06.0014U
• Current (ATEX)
  • 28 A
• Current (IECEX)
  • 28 A
• Ex 2014/34/EU label
  • II 2 G D
• IEC Ex certificate
  • IECEXKEM06.0014U_e.pdf
• Marking EN 60079-7
  • Ex e II
• Max. voltage (ATEX)
  • 690 V
• Max. voltage (IECEX)
  • 690 V
• Operating temperature range
  • For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Voltage, cross-connection
  • CrossConnectionGuide.pdf
• Wire cross section max. (ATEX)
  • 4 mm²
• Wire cross section max. (IECEX)
  • 4 mm²

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• Mounting rail
  • TS 35, TS 32
• N-function
  • No
• No. of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Version
  • Screw connection, for screwable cross-connection, One end without connector

Temperatures

• Continuous operating temp., max.
  • 100 °C
• Continuous operating temp., min.
  • -50 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 12 AWG
• Conductor size Factory wiring min. (UR)
  • 22 AWG
• Conductor size Field wiring max. (UR)
  • 12 AWG
• Conductor size Field wiring min. (UR)
  • 22 AWG
• Current size C (UR)
  • 25 A
• Voltage size C (UR)
  • 600 V
