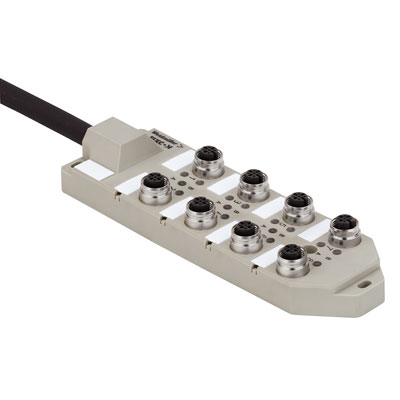

Weidmuller 1848020000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1848020000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- CURUS
- ROHS
- Conform
- UL File Number Search
- E92202
Classifications
- eClass 6.2
- 27-06-91-90
- eClass 7.1
- 27-06-91-90
- eClass 8.1
- 27-06-91-90
- eClass 9.0
- 27-06-91-90
- eClass 9.1
- 27-44-01-08
- ETIM 3.0
- EC001856
- ETIM 4.0
- EC002585
- ETIM 5.0
- EC002585
- ETIM 6.0
- EC002585
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Height
- 26 mm
- Height (inches)
- 1.024 inch
- Net weight
- 555 g
- Width
- 54 mm
- Width (inches)
- 2.126 inch
General Data
- Cable length
- 2 m
- connection thread
- M12
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Current per signal
- 2 A
- Distributor outlet
- Fixed cable version
- Electrical isolation available
- No
- Fire behaviour
- V-0
- Housing colour
- grey, RAL 7032
- Housing main material
- PA 6 GF
- Insulation resistance
- 10
- LED
- Yes
- LED colour for indicating operation
- green
- LED colour for I/O function
- yellow
- LED initiator
- Yes
- Max. current-carrying capacity per slot
- 4 A
- No. of poles
- 5
- Number of contact sockets
- 8
- Pollution severity
- 3
- Protection degree
- IP67
- Rated voltage , max.
- 30 V
- Rated voltage , min.
- 10 V
- Screw socket
- CuZn, nickel-plated
- Sheathing stripping length
- 100 mm
- Suitable for cable carriers
- Yes
- Test voltage
- 1 kV
- Total current
- 10 A
General Ordering Data
- GTIN (EAN)
- 4032248369218
- Order No.
- 1848020000
- Qty.
- 1 pc(s).
- Type
- SAI-8-F 5P FC 2M
- Version
- Sensor-actuator passive distributor, Push-Pull, M12, Fixed cable version, 2 m, Yes
Standards
- Certificate No. (cURus)
- E92202
Temperatures
- Operating temperature
- -25 - 80°C
- Operating temperature range, max.
- 80 °C
- Operating temperature range, min.
- -25 °C
