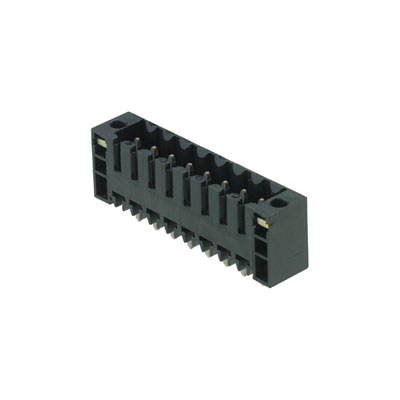

Weidmuller 1842820000

Approvals

• Approvals
  • CSA, EAC, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637
• UNSPSC
  • 30-21-18-10

Dimensions And Weights

• Net weight
  • 2.704 g
• Width
  • 31.5 mm
• Width (inches)
  • 1.24 inch

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Comparative Tracking Index (CTI)
  • ≥ 175
• Contact material
  • CuSn
• Contact surface
  • tinned
• GWFI
  • 960 °C
• GWIT
  • 930 °C
• Insulating material
  • LCP GF
• Insulating material group
  • IIIa
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 2-3 µm Ni / 5-7 µm Sn
• Layer structure of solder connection
  • 2-3 µm Ni / 5-7 µm Sn
• Max. relative humidity during storage
  • 80 %
• Moisture Level (MSL)
  • 1
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -30 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Diameter of solder eyelet D = 1.4+0.1mm Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.

Packing

• Packaging
  • Box
• VPE height
  • 125 mm
• VPE length
  • 35 mm
• VPE width
  • 90 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-1176845
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 10 A
• Rated current (Use group D / CSA)
  • 10 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 12 A
• Rated current, max. number of poles (Tu=40°C)
  • 10 A
• Rated current, min. number of poles (Tu=20°C)
  • 15 A
• Rated current, min. number of poles (Tu=40°C)
  • 13 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• Short-time withstand current resistance
  • 3 x 1s with 100 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (UR)
  • E60693
• Institute (UR)
  • UR
• Rated current (Use group B / UL 1059)
  • 10 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Specifications

• Can be coded
  • Yes
• L1 in inches
  • 0.827 inch
• L1 in mm
  • 21 mm
• Mounting onto the PCB
  • THT/THR solder connection
• Number of poles
  • 7
• Number of rows
  • 1
• Number of solder pins per pole
  • 1
• Outgoing elbow
  • 180°
• Outside diameter of solder pad
  • 2.3 mm
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Plugging cycles
  • 25
• Plugging force/pole, max.
  • 6 N
• Product family
  • OMNIMATE Signal - series BL/SL 3.50
• Pulling force/pole, max.
  • 6 N
• Solder eyelet hole diameter (D)
  • 1.4 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • d = 1.2 mm, Octagonal
• Solder pin dimensions = d tolerance
  • 0 / -0,03 mm
• Solder pin length (l)
  • 3.2 mm
• Solder pin length tolerance
  • 0 / -0.3 mm
• Template aperture diameter
  • 2.1 mm
• Tolerance of solder pin position
  • ± 0.1 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 10
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from back-of-hand touch
• Type of connection
  • Board connection
• Volume resistance
  • 4.50 mΩ
