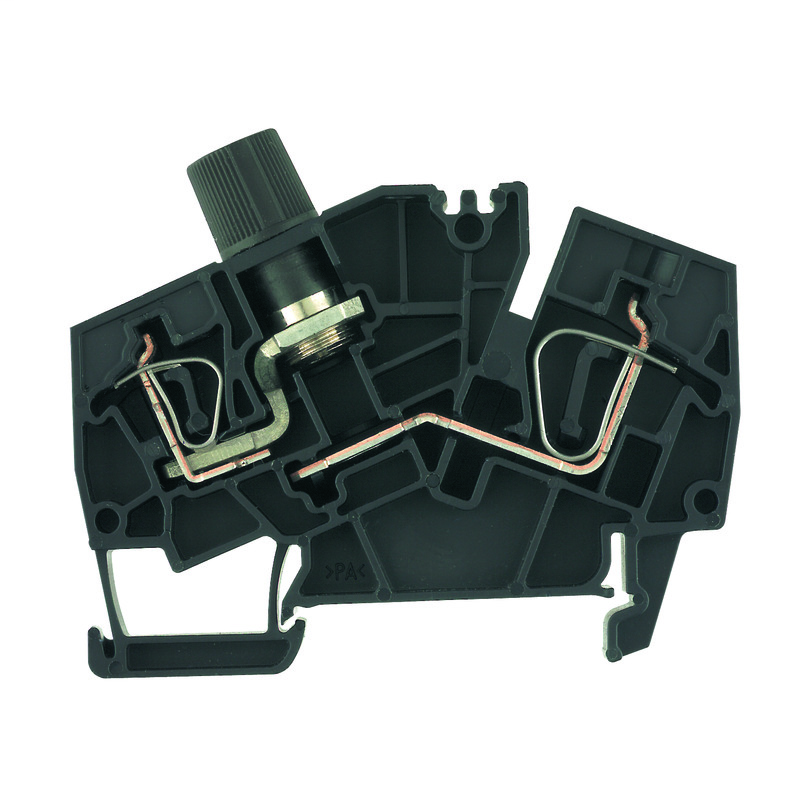

Weidmuller 1820930000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, cURus, DNV/GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-16
• eClass 9.0
  • 27-14-11-16
• eClass 9.1
  • 27-14-11-16
• ETIM 6.0
  • EC000899
• ETIM 7.0
  • EC000899
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Additional Connection)

• Blade size, additional connection
  • 0.6 x 3.5 mm
• Clamping range, further connection, max.
  • 4 mm²
• Clamping range, further connection, min.
  • 0.5 mm²
• Conductor cross-section, flexible, further connection, min.
  • 0.5 mm²
• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
  • 2.5 mm²
• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min.
  • 0.5 mm²
• Connection direction
  • Inclined / angled
• Connection type, additional connection
  • Tension-clamp connection
• Cross-section for connected wire, flexible, further connection, max.
  • 4 mm²
• Cross-section for connected wire, solid-core, further connection, max.
  • 4 mm²
• Cross-section for connected wire, solid-core, further connection, min.
  • 0.5 mm²
• Number of connections, additional connection
  • 2
• Rated cross-section, further connection
  • 2.5 mm²
• Stripping length , additional connection
  • 10 mm

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 10 mm²
• Clamping range, min.
  • 0.13 mm²
• Connection direction
  • Inclined / angled
• Gauge to IEC 60947-1
  • A3
• Number of connections
  • 1
• Stripping length
  • 10 mm
• Type of connection
  • Tension-clamp connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 10 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 10 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 200039-1152892
• Current size C (CSA)
  • 10 A
• Current size D (CSA)
  • 5 A
• Voltage size C (CSA)
  • 300 V
• Voltage size D (CSA)
  • 600 V
• Wire cross section max. (CSA)
  • 8 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 55 mm
• Depth (inches)
  • 2.165 inch
• Depth including DIN rail
  • 55.5 mm
• Height
  • 68 mm
• Height (inches)
  • 2.677 inch
• Net weight
  • 25.72 g
• Width
  • 12.2 mm
• Width (inches)
  • 0.48 inch

Display Element

• Operating voltage for display, max.
  • 500 V
• Type of voltage for indicator
  • AC/DC

Fuse Terminals

• Cartridge fuse
  • G-Si. 5 x 20
• Display
  • Without LED
• Fuse holder (cartridge holder)
  • for screw fixing
• Operating voltage, max.
  • 500 V
• Power loss for overload and short-circuit protection for a composite arrangement
  • 1.6 W at 6.3 A @ 40°C
• Power loss for overload and short-circuit protection for an individual arrangement
  • 2.5 W at 6.3 A @ 37°C
• Type of voltage for indicator
  • AC/DC

Material Data

• Colour
  • black
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Rating Data

• Current at maximum wires
  • 10 A
• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 1.31 W
• Rated cross-section
  • 6 mm²
• Rated current
  • 10 A
• Rated impulse withstand voltage
  • 4 kV
• Rated voltage
  • 500 V
• Rated voltage to adjoining terminal
  • 500 V
• Standards
  • IEC 60947-7-3
• Volume resistance according to IEC 60947-7-x
  • 0.78 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• N-function
  • No
• Number of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Rail
  • TS 35
• Version
  • Tension-clamp connection, Fuse cartridge, Without LED, for plug-in cross-connector, One end without connector

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Continuous operating temp., min.
  • -50 °C
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (cURus)
  • E60693
• Conductor size Factory wiring max. (cURus)
  • 12 AWG
• Conductor size Factory wiring min. (cURus)
  • 26 AWG
• Conductor size Field wiring max. (cURus)
  • 12 AWG
• Conductor size Field wiring min. (cURus)
  • 26 AWG
• Current size C (cURus)
  • 10 A
• Current size D (cURus)
  • 5 A
• Voltage size C (cURus)
  • 300 V
• Voltage size D (cURus)
  • 600 V
• Wire cross section max. (cURus)
  • 8 AWG
• Wire cross section min. (cURus)
  • 20 AWG
