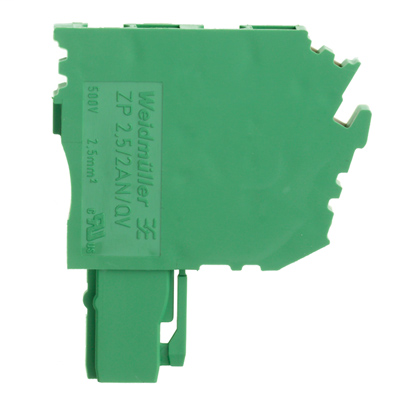

Z-series, Plug-in connector, green, Direct mountingZP 2.5/2AN/QV/1 GN
Weidmuller 1820590000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Open sides
- closed
- Type of mounting
- Plugged
Approvals
- Approvals
- CCSAUS, CE, cURus, DNV GL, EAC, KEMAKEUR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-92
- eClass 9.0
- 27-14-11-92
- eClass 9.1
- 27-14-11-92
- ETIM 6.0
- EC002848
- ETIM 7.0
- EC002848
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.13 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A2
- Number of connections
- 2
- Stripping length
- 10 mm
- Type of connection
- Plug-in connection
- Wire connection cross section AWG, max.
- AWG 26
- Wire connection cross section AWG, min.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate number (cCSAus)
- 154685-1460993
- Current size C (cCSAus)
- 20 A
- Current size D (cCSAus)
- 5 A
- Voltage size C (cCSAus)
- 300 V
- Voltage size D (cCSAus)
- 600 V
- Wire cross section max. (cCSAusX)
- 12 AWG
- Wire cross section min. (cCSAusX)
- 26 AWG
Dimensions And Weights
- Depth
- 41 mm
- Depth (inches)
- 1.614 inch
- Height
- 36.5 mm
- Height (inches)
- 1.437 inch
- Net weight
- 6.02 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
Material Data
- Colour
- green
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 24 A
- Max. voltage of clamp support & pluggable system
- 690 V
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Rated impulse withstand voltage
- 6 kV
- Rated impulse withstand voltage to adjacent terminal
- 6 kV
- Rated voltage
- 500 V
- Rated voltage to adjoining terminal
- 500 V
- Standards
- IEC 60947-7-1, IEC 61984
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- PE connection
- No
- Version
- Set of connectors, Cross-connector, pluggable, 2-conductor connection, Tension-clamp connection
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring max. (cURus)
- 12 AWG
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring max. (cURus)
- 12 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 20 A
- Current size D (cURus)
- 5 A
- Voltage size C (cURus)
- 300 V
- Voltage size D (cURus)
- 600 V
