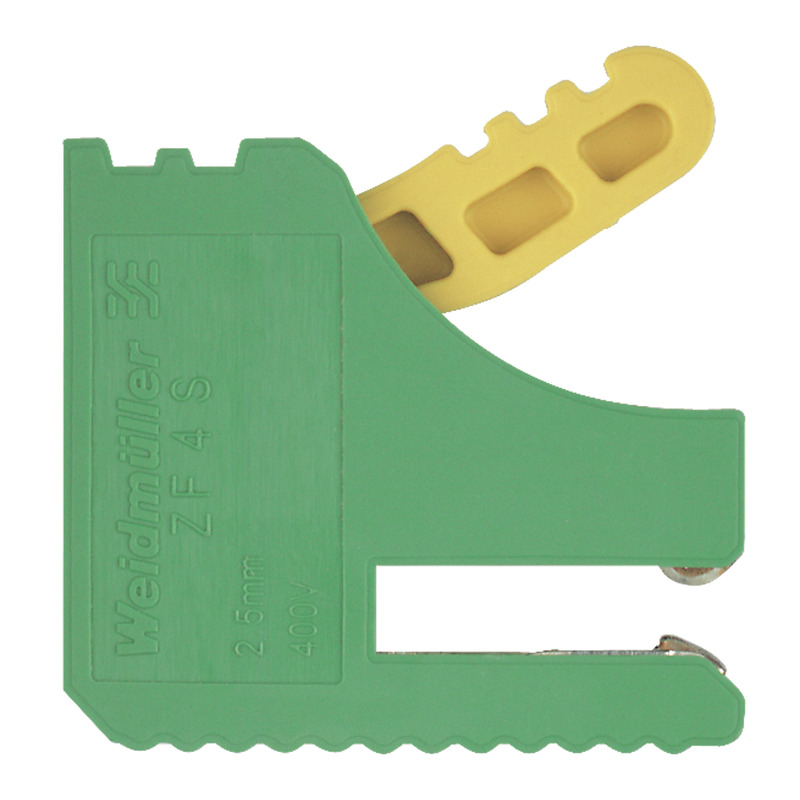

Weidmuller 1814670000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Accessories, Special terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Wemid, Green/yellow, Direct mounting, BusbarZF 4 S GN
Weidmuller 1814670000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting, Busbar
- Type of mounting
- Plugged
Approvals
- Approvals
- EAC, KEMAKEUR
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-46
- eClass 9.0
- 27-14-11-46
- eClass 9.1
- 27-14-11-46
- ETIM 6.0
- EC000001
- ETIM 7.0
- EC000001
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Connection direction
- on side
- Number of connections
- 1
- Stripping length
- 10 mm
- Type of connection
- Tension-clamp connection
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions
- TS 35 offset
- 39.5 mm
Dimensions And Weights
- Depth
- 22 mm
- Depth (inches)
- 0.866 inch
- Height
- 24.5 mm
- Height (inches)
- 0.965 inch
- Net weight
- 4.52 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Material Data
- Colour
- silver
- Insulating material
- Wemid
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 400 V
- Standards
- IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
System Specifications
- Version
- for busbar 10 x 3 mm
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Operating temperature range, max.
- 120 °C
