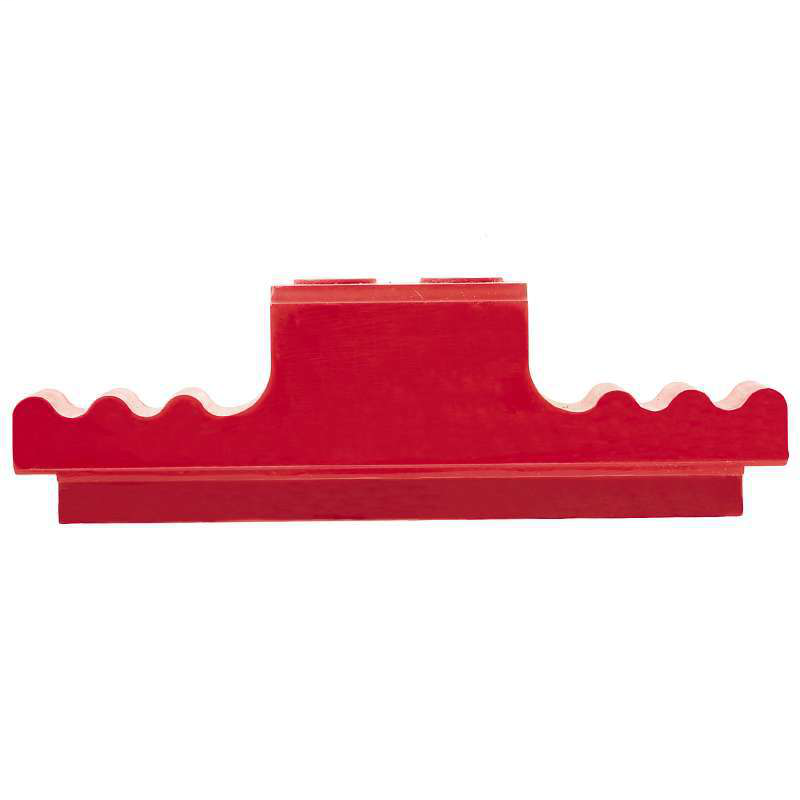

Weidmuller 1809180000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 240 mm², Screw connection, Direct mountingST 4000/L M12 F
Weidmuller 1809180000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Cable lug to DIN 46234
- 10...240 mm²
- Cable lug to DIN 46235
- 25...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 16 mm²
- Connection direction
- on side
- Number of connections
- 2
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 62 Nm
- Tightening torque, min.
- 60 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 240 mm²
- Wire connection cross-section, finely stranded, min.
- 16 mm²
Dimensions And Weights
- Height
- 180 mm
- Height (inches)
- 7.087 inch
- Net weight
- 691.667 g
- Width
- 55 mm
- Width (inches)
- 2.165 inch
Rating Data
- Current at maximum wires
- 560 A
- Impulse voltage with epoxy resin partition plate
- 30 kV
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 13.28 W
- Rated cross-section
- 240 mm²
- Rated current
- 560 A
- Rated impulse withstand voltage
- 30 kV
- Rated voltage
- 4,000 V
- Voltage with epoxy resin partition plate
- 4,000 V
- Volume resistance according to IEC 60947-7-x
- 0.08 mΩ
Stud Connection
- Cable lug to DIN 46234
- 10...240 mm²
- Cable lug to DIN 46235
- 25...240 mm²
- Clamping range, bolted connection , max.
- 240 mm²
- Clamping range, bolted connection , min.
- 16 mm²
- Impulse voltage with epoxy resin partition plate
- 30 kV
- Stud size for spade connection
- M 12
- Tightening torque, max.
- 62 Nm
- Tightening torque, min.
- 60 Nm
- Voltage with epoxy resin partition plate
- 4,000 V
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
