Weidmuller 1802780000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

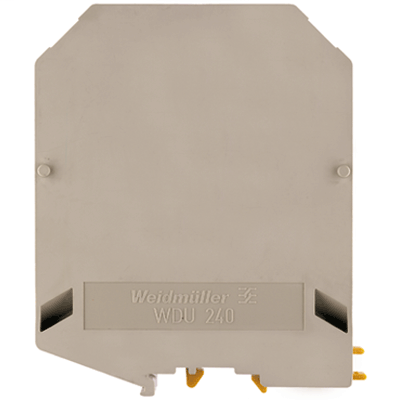

Feed-through terminal, Screw connection, 240 mm², 1000 V, 415 A, dark beigeWDU 240
Weidmuller 1802780000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Cross-section for connected wire, stranded, two clampable wires, max.
- 95 mm²
- Cross-section for connected wire, stranded, two clampable wires, min.
- 35 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 50 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
- 50 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 35 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 95 mm²
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Open sides
- closed
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, EAC, INMETRO, KEMAATEX, KEMAKEUR, UR
- ROHS
- Conform
- UL File Number Search
- E175455
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- S8 (DIN 6911)
- Clamping range, max.
- 240 mm²
- Clamping range, min.
- 70 mm²
- Clamping screw
- M 10
- Connection cross-section, stranded, max.
- 240 mm²
- Connection cross-section, stranded, min.
- 70 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- B15
- Number of connections
- 2
- Stripping length
- 40 mm
- Tightening torque, max.
- 30 Nm
- Tightening torque, min.
- 25 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 240 mm²
- Wire connection cross-section, finely stranded, min.
- 70 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 185 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 70 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 185 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 70 mm²
Csa Rating Data
- Certificate No. (CSA)
- 213329
- Current size C (CSA)
- 400 A
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 500 kcmil
- Wire cross section min. (CSA)
- 0 AWG
Dimensions And Weights
- Depth
- 123.7 mm
- Depth (inches)
- 4.87 inch
- Depth including DIN rail
- 124 mm
- Height
- 100 mm
- Height (inches)
- 3.937 inch
- Net weight
- 472.5 g
- Width
- 36 mm
- Width (inches)
- 1.417 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 415 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 13.28 W
- Rated cross-section
- 240 mm²
- Rated current
- 415 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.08 mΩ
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA01ATEX2186U
- Current (ATEX)
- 350 A
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Max. voltage (ATEX)
- 1100 V
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Wire cross section max. (ATEX)
- 240 mm²
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- Yes
- Rail
- TS 32, TS 35
- Version
- Screw connection, for screwable cross-connection, in closed state
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -60 °C
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E175455
- Current size C (UR)
- 380 A
- Voltage size C (UR)
- 600 V
- Wire cross section max. (UR)
- 500 kcmil
