Description

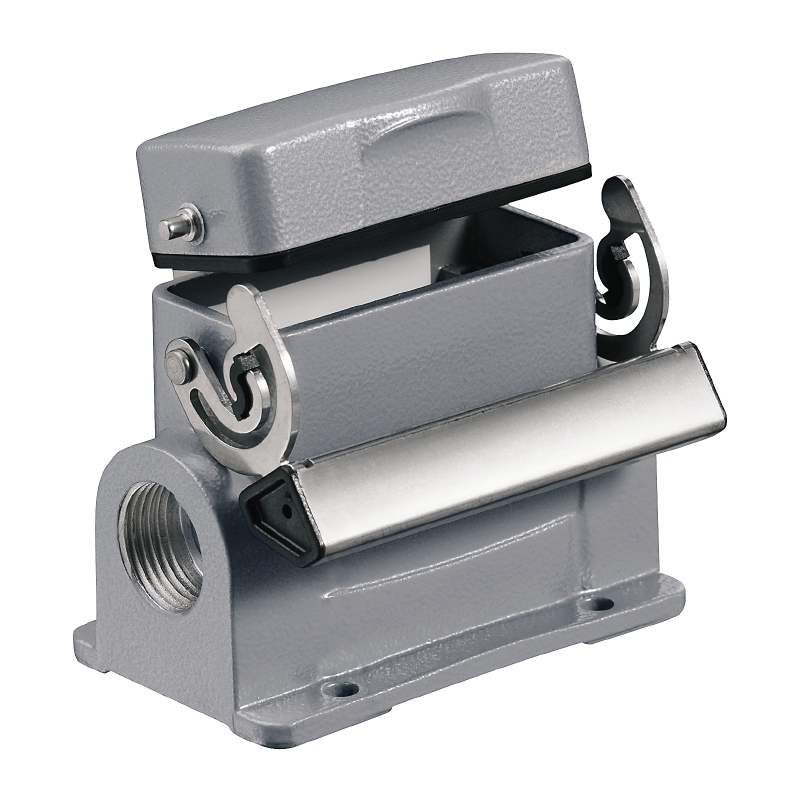

HDC enclosures, Size: 2, Protection degree: IP65, Closed base, End-locking clamp, lower side, Standard, with cover, Size of cable entries: M 20HDC 10A SDLU 2M20G
Weidmuller 1788660000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Cable entry
- w. threading
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Base housing
Dimensions
- Cable entry
- w. threading
- Height of base B1
- 4 mm
- Height of housing B
- 69.5 mm
- Hole pitch length A2
- 48 mm
- Total length housing
- 63 mm
- Width base C1
- 50 mm
- Width housing C
- 29.5 mm
Dimensions And Weights
- Height
- 69.5 mm
- Height (inches)
- 2.736 inch
- Mounting dimension - height
- 40 mm
- Mounting dimension - width
- 48 mm
- Net weight
- 249 g
- Width
- 75.9 mm
- Width (inches)
- 2.988 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
General Data
- EMC housings
- No
- Housing main material
- diecast aluminium
- Material of locking element
- Stainless steel, rust-proof
- Protection class note
- Protection class with secured cover: IP 65
- Protection degree
- IP65
- Surface finish
- Powder coating
- Tightening torque
- 0.5 Nm
General Descriptions
- Protection degree
- IP65
- Size
- 2
- Size of cable entries
- M 20
- Type of locking
- End-locking clamp
Material
- Colour
- grey
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Cable entry
- w. threading
- Clamp version
- End-locking clamp
- Cover
- with cover
- Design
- Standard
- Design of cover
- with cover
- Design of housing
- Closed base
- Design of locking system
- End-locking clamp, lower side
- Internal thread
- M 20
- Number of cable entry on top
- 0
- Number of cable entry sideways
- 2
- Sealing
- NBR
- Size
- 2
- Size of cable entries
- M 20
- Suitable for ModuPlug
- No
- Tightening torque
- 0.5 Nm
- Top part/bottom part/lid
- lower part
- Type
- Base housing
