Weidmuller 1780850000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

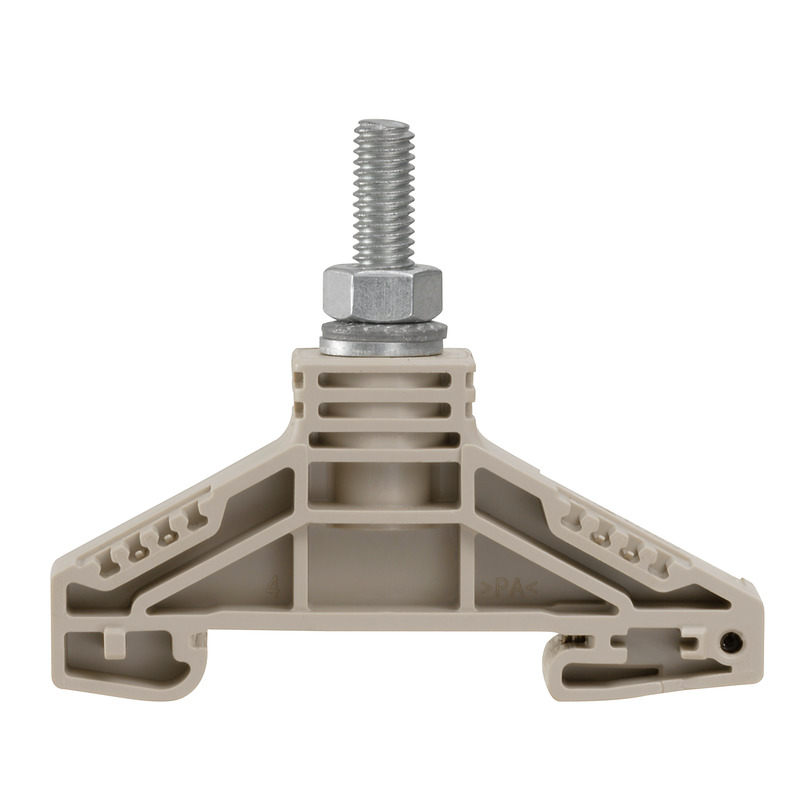

Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 35 mm², Threaded stud connectionWF 6
Weidmuller 1780850000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Open sides
- Open
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, EAC, KEMAKEUR, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- 2 x cable lugs DIN 46 234
- 2.5 to 35 mm²
- 2 x cable lugs DIN 46 235
- 6...25 mm²
- Cable lug to DIN 46234
- 2.5...35 mm²
- Cable lug to DIN 46235
- 6...25 mm²
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 2.5 mm²
- Number of connections
- 1
- Stud size for spade connection
- M 6
- Tightening torque, max.
- 6 Nm
- Tightening torque, min.
- 3 Nm
- Type of connection
- Threaded stud connection
Csa Rating Data
- Certificate No. (CSA)
- 200039-1244019
- Current size C (CSA)
- 150 A
- Voltage size C (CSA)
- 1000 V
- Wire cross section max. (CSA)
- 2 AWG
- Wire cross section min. (CSA)
- 14 AWG
Dimensions And Weights
- Depth
- 54.5 mm
- Depth (inches)
- 2.146 inch
- Height
- 67 mm
- Height (inches)
- 2.638 inch
- Net weight
- 26.494 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 125 A
- Impulse voltage with epoxy resin partition plate
- 12 kV
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 4 W
- Rated cross-section
- 35 mm²
- Rated current
- 125 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Voltage with epoxy resin partition plate
- 2,300 V
- Volume resistance according to IEC 60947-7-x
- 0.26 mΩ
Safety Note
- Safety notice
- Safety Information
Stud Connection
- 2 x cable lugs DIN 46 234
- 2.5 to 35 mm²
- 2 x cable lugs DIN 46 235
- 6...25 mm²
- Cable lug to DIN 46234
- 2.5...35 mm²
- Cable lug to DIN 46235
- 6...25 mm²
- Impulse voltage with epoxy resin partition plate
- 12 kV
- Stud size for spade connection
- M 6
- Tightening torque, max.
- 6 Nm
- Tightening torque, min.
- 3 Nm
- Voltage with epoxy resin partition plate
- 2,300 V
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- Number of clamping points per level
- 1
- Number of levels
- 1
- PE connection
- No
- Rail
- TS 35
- Version
- Single-stud terminals
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 2 AWG
- Conductor size Factory wiring min. (UR)
- 14 AWG
- Conductor size Field wiring max. (UR)
- 2 AWG
- Conductor size Field wiring min. (UR)
- 14 AWG
- Current size C (UR)
- 115 A
- Voltage size C (UR)
- 1000 V
