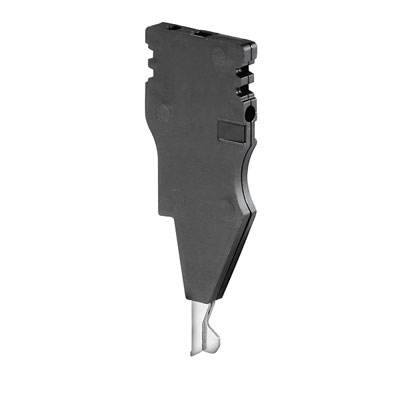

Weidmuller 1776210000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1776210000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- With snap-in pegs
- No
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 6.2
- 27-14-92-14
- eClass 7.1
- 27-14-92-14
- eClass 8.1
- 27-14-11-48
- eClass 9.0
- 27-14-11-48
- eClass 9.1
- 27-14-11-48
- ETIM 3.0
- EC002255
- ETIM 4.0
- EC002255
- ETIM 5.0
- EC002255
- ETIM 6.0
- EC002555
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Clamping range, rated connection, max.
- 1 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Number of connections
- 1
- Stripping length
- 10 mm
- Tightening torque, max.
- 0.3 Nm
- Tightening torque, min.
- 0.3 Nm
- Type of connection
- Plug-in connection
- Wire connection cross section, finely stranded, max.
- 1 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
- 1 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
- 0.5 mm²
- Wire connection cross section, solid core max. rated connection
- 1 mm²
- Wire connection cross section, solid core, min. rated connection
- 0.5 mm²
Dimensions
- Depth
- 54 mm
- Depth (inches)
- 2.126 inch
- Height
- 20 mm
- Height (inches)
- 0.787 inch
- Height with TS 35
- 54 mm
- Net weight
- 3.72 g
- Width
- 3.5 mm
- Width (inches)
- 0.138 inch
Dimensions And Weights
- Depth
- 54 mm
- Depth (inches)
- 2.126 inch
- Height
- 20 mm
- Height (inches)
- 0.787 inch
- Net weight
- 3.72 g
- Width
- 3.5 mm
- Width (inches)
- 0.138 inch
General Ordering Data
- GTIN (EAN)
- 4032248190676
- Order No.
- 1776210000
- Qty.
- 25 pc(s).
- Type
- ZTA 5
- Version
- Accessories, Test adapter, 13.5 A
Material Data
- Colour
- Black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Rated cross-section
- 1 mm²
- Rated current
- 13.5 A
- Rated voltage
- 200 V
System Specifications
- Mounting rail
- none
- No. of clamping points per level
- 1
- Number of levels
- 1
- Version
- For the terminals
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
