Description

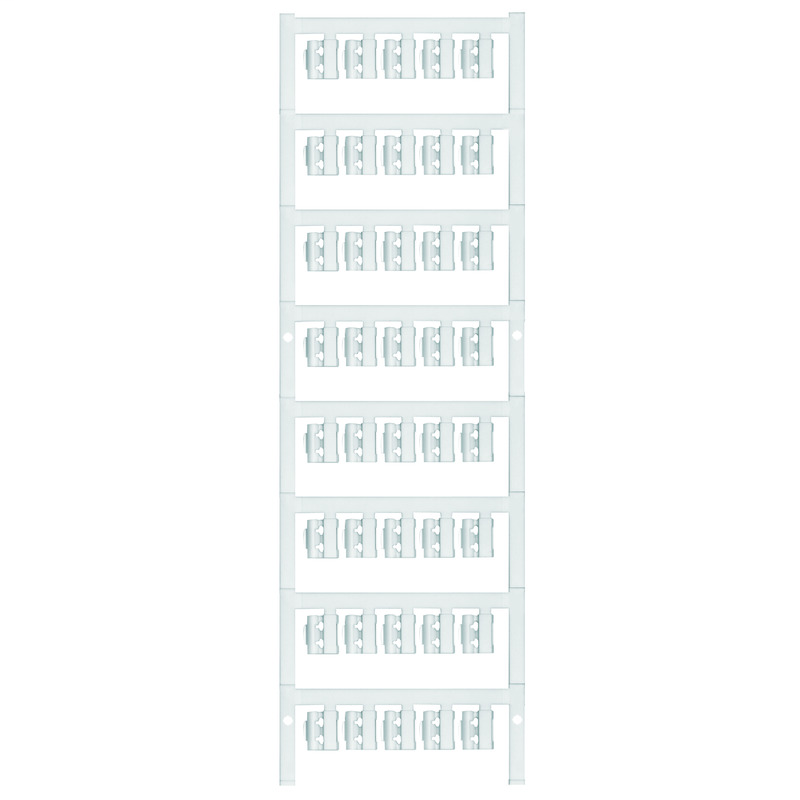

Weidmuller 1752720000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-40-04-01
- eClass 9.0
- 27-40-04-01
- eClass 9.1
- 27-40-04-01
- ETIM 6.0
- EC001530
- ETIM 7.0
- EC001530
- UNSPSC
- 44-12-17-08
Conductor And Cable Markers
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.75 mm²
- Conductor O.D.
- 2 - 3.5 mm
- Conductor O.D., max.
- 3.5 mm
- Conductor O.D., min.
- 2 mm
- Halogen
- No
Dimensions And Weights
- Depth
- 7 mm
- Depth (inches)
- 0.276 inch
- Height
- 12 mm
- Height (inches)
- 0.472 inch
- Net weight
- 0.325 g
- Width
- 5.8 mm
- Width (inches)
- 0.228 inch
General Data
- Advice label
- Colour based on customer requirements (Please send M-Print PRO file)
- Colour
- To customer specification
- Colour of printing
- black
- compatible printer
- 1324380000
- Halogen
- No
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Orientation of print
- horizontal
- Printed characters
- Based on customer requirements (Please send M-Print PRO file)
- Printing method
- MC Laser
- Size of labelling field
- 12 x 4.1 mm
- Type of printing
- To customer specification
- UL 94 flammability rating
- V-2
- Width
- 5.8 mm
