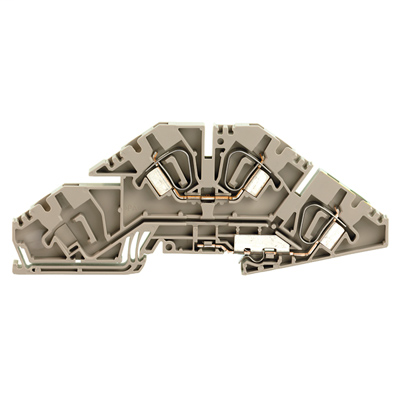

Weidmuller 1733300000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • EAC
  • CE
• ROHS
  • Conform

Classifications

• eClass 5.1
  • 27-14-11-18
• eClass 6.2
  • 27-14-11-20
• eClass 7.1
  • 27-14-11-20
• eClass 8.1
  • 27-14-11-20
• eClass 9.0
  • 27-14-11-20
• eClass 9.1
  • 27-14-11-25
• ETIM 3.0
  • EC001329
• ETIM 4.0
  • EC001329
• ETIM 5.0
  • EC001329
• ETIM 6.0
  • EC001329
• UNSPSC
  • 30-21-18-01

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, rated connection, max.
  • 6 mm²
• Clamping range, rated connection, min.
  • 0.13 mm²
• Connection direction
  • Inclined / angled
• Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
  • 0.5 mm²
• Gauge to IEC 60947-1
  • A4
• Number of connections
  • 3
• Stripping length
  • 12 mm
• Type of connection
  • Tension clamp connection
• Wire connection cross section AWG, max.
  • AWG 10
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
  • 4 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
  • 4 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
  • 0.5 mm²
• Wire connection cross section, solid core max. rated connection
  • 6 mm²
• Wire connection cross section, solid core, min. rated connection
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 49.5 mm
• Depth (inches)
  • 1.949 inch
• Height
  • 122 mm
• Height (inches)
  • 4.803 inch
• Net weight
  • 20.69 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

General Ordering Data

• GTIN (EAN)
  • 4008190979584
• Order No.
  • 1733300000
• Qty.
  • 50 pc(s).
• Type
  • ZDK 4S/L/PE
• Version
  • Z-series, Installation multi-tier terminal, Double-tier terminal, Rated cross-section: 4 mm², Tension clamp connection, Dark Beige, Direct mounting

Material Data

• Colour
  • Dark Beige
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Product Information

• Descriptive text ordering data
  • Spacing between mounting plates should be 200mm.
• Descriptive text technical data
  • The supply to the busbar is via a busbar connection (ZB 35, ZB 16 or ZF 4S).

Rating Data

• Current at maximum wires
  • 32 A
• Pollution severity
  • 3
• Rated cross-section
  • 4 mm²
• Rated current
  • 32 A
• Rated impulse withstand voltage
  • 6 kV
• Rated voltage
  • 400 V
• Standards
  • IEC 60947-7-1 (-7-2)
• Volume resistance according to IEC 60947-7-x
  • 2 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• Mounting rail
  • TS 35
• N-function
  • No
• No. of clamping points per level
  • 2
• Number of levels
  • 2
• Number of potentials
  • 2
• Number of potentials per tier
  • 1
• PE connection
  • Yes
• PE function
  • Yes
• PEN function
  • No
• Version
  • Tension-clamp connection, L connection, With PE connection, for plug-in cross-connector, One end without connector

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Continuous operating temp., min.
  • -50 °C
