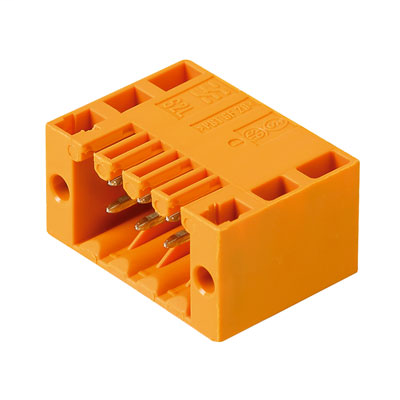

Weidmuller 1728550000

Approvals

• Approvals
  • CSA, EAC, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637
• UNSPSC
  • 30-21-18-10

Dimensions And Weights

• Depth
  • 14.2 mm
• Depth (inches)
  • 0.559 inch
• Height
  • 14 mm
• Height (inches)
  • 0.551 inch
• Height of lowest version
  • 10.5 mm
• Net weight
  • 4.17 g
• Width
  • 45.5 mm
• Width (inches)
  • 1.791 inch

Material Data

• Colour
  • orange
• Colour chart (similar)
  • RAL 2000
• Comparative Tracking Index (CTI)
  • ≥ 200
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• GWFI
  • 960 °C
• Insulating material
  • PBT
• Insulating material group
  • IIIa
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 2-3 µm Ni / 5-7 µm Sn glossy
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -30 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Gold-plated contact surfaces on request Spacing between rows: see hole layout Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.

Packing

• Packaging
  • Box
• VPE height
  • 108 mm
• VPE length
  • 55 mm
• VPE width
  • 70 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-1488444
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 5 A
• Rated voltage (Use group B / CSA)
  • 150 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 10 A
• Rated current, max. number of poles (Tu=40°C)
  • 8.5 A
• Rated current, min. number of poles (Tu=20°C)
  • 10 A
• Rated current, min. number of poles (Tu=40°C)
  • 9 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 250 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 125 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 80 V
• Short-time withstand current resistance
  • 3 x 1s with 77 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (UR)
  • E60693
• Institute (UR)
  • UR
• Rated current (Use group B / UL 1059)
  • 10 A
• Rated current (Use group C / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 150 V
• Rated voltage (Use group C / UL 1059)
  • 50 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Specifications

• Can be coded
  • Yes
• L1 in inches
  • 1.378 inch
• L1 in mm
  • 35 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 22
• Number of rows
  • 1
• Number of solder pins per pole
  • 1
• Outgoing elbow
  • 90°
• Pin series quantity
  • 2
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Plugging cycles
  • 25
• Plugging force/pole, max.
  • 5 N
• Product family
  • OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
• Pulling force/pole, max.
  • 4 N
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • d = 1.0 mm, Octagonal
• Solder pin length (l)
  • 3.5 mm
• Tolerance of solder pin position
  • ± 0.20 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 10
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from back-of-hand touch
• Type of connection
  • Board connection
