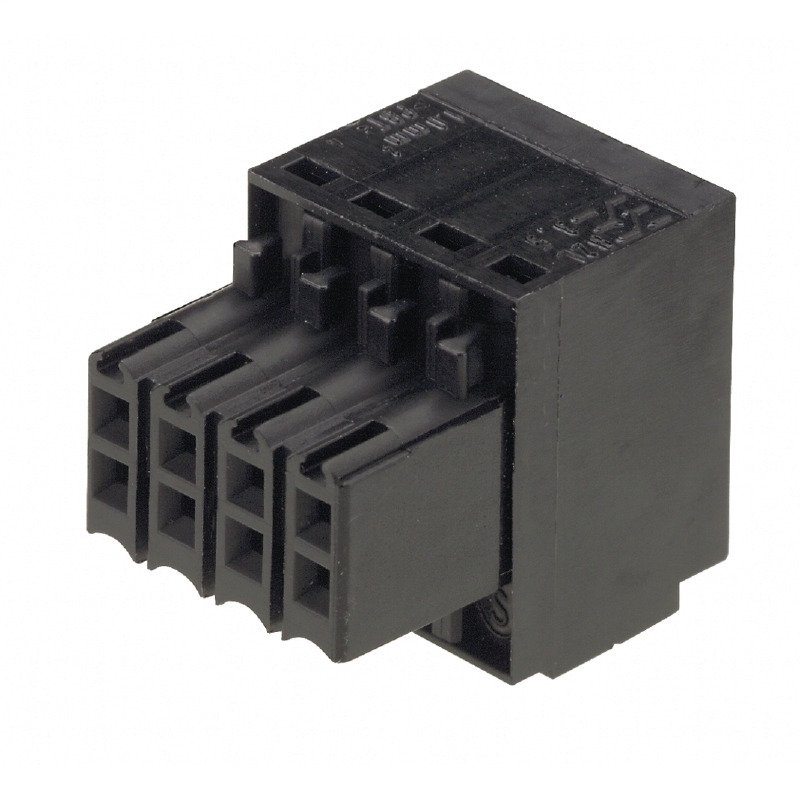

Weidmuller 1727680000

Approvals

• Approvals
  • UR
  • CSA
  • EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 5.1
  • 27-26-07-01
• eClass 6.2
  • 27-26-07-04
• eClass 7.1
  • 27-44-04-02
• eClass 8.1
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 4.0
  • EC002637
• ETIM 5.0
  • EC002637
• ETIM 6.0
  • EC002637
• UNSPSC
  • 30-21-18-10

Conductors Suitable For Connection

• Clamping range, rated connection, max.
  • 1 mm²
• Clamping range, rated connection, min.
  • 0.08 mm²
• Flexible, max. H05(07) V-K
  • 1 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Solid, max. H05(07) V-U
  • 1 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 18
• Wire connection cross section AWG, min.
  • AWG 28
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 0.34 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.14 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 0.34 mm²
• w. wire end ferrule, DIN 46228 pt 1, min
  • 0.14 mm²

Dimensions And Weights

• Net weight
  • 7.92 g

General Ordering Data

• GTIN (EAN)
  • 4032248037872
• Order No.
  • 1727680000
• Packaging
  • Box
• Product data
  • IEC: 200 V / 10.3 A / 0.2 - 1 mm²
  • UL: 300 V / 10 A / AWG 28 - AWG 16
• Qty.
  • 72 pc(s).
• Type
  • B2L 3.50/14/180 SN BK BX
• Version
  • PCB plug-in connector, female plug, 3.50 mm, No. of poles: 14, 180°, Tension clamp connection, Clamping range, rated connection, max.: 1 mm², Box

Material Data

• Colour
  • Black
• Colour chart (similar)
  • RAL 9011
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• Insulating material
  • PBT
• Insulation resistance
  • ≥ 10
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -30 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request.

Rated Data Acc. To CSA

• Certificate No. (CSA)
  • 200039-1488444
• Institute (CSA)
  • icon
• Rated current (use group B)
  • 5 A
• Rated voltage (Use group B)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 18
• Wire cross-section, AWG, min.
  • AWG 28

Rated Data Acc. To IEC

• Rated current, max. no. of poles (Ta = 20°C)
  • 8.7 A
• Rated current, max. no. of poles (Ta = 40°C)
  • 7.4 A
• Rated current, min. no. of poles (Ta = 20°C)
  • 10.3 A
• Rated current, min. no. of poles (Ta = 40°C)
  • 8.9 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 200 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 80 V
• Short-time withstand current resistance
  • 3 x 1s with 77 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To UL 1059

• Certificate No. (UR)
  • E60693
• Institute (UR)
  • icon
• Rated current (use group B)
  • 10 A
• Rated current (use group C)
  • 10 A
• Rated voltage (use group B)
  • 300 V
• Rated voltage (use group C)
  • 50 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 28

System Parameters

• Can be coded
  • Yes
• Conductor outlet direction
  • 180°
• L1 in inches
  • 0.827 inch
• L1 in mm
  • 21 mm
• No. of poles
  • 14
• Number of rows
  • 1
• Packaging
  • Box
• Pin series quantity
  • 2
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
• push-in force/pole
  • 3 N
• Rated cross-section
  • 1 mm²
• Screwdriver blade
  • 0.4 x 2.5
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 7 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Wire connection method
  • Tension clamp connection
• Withdrawal force per pole
  • 6 N
