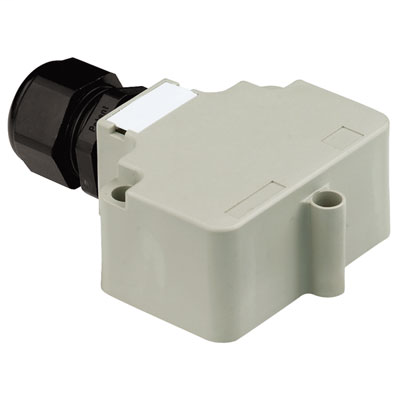

Weidmuller 1724750050
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAI Passive, Sensor-actuator passive distributor, IDC, Hood version, NoSAI-4/6/8-MH BL3.5 SV
Weidmuller 1724750050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
- UNSPSC
- 43-17-27-10
Connection Data
- Cable glands
- M 20
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.08 mm²
- Conductor O.D., max.
- 1.6 mm
- Conductor O.D., min.
- 1.2 mm
- Connection type PE
- Screw connection
- Distributor outlet
- Hood version
- max. connection of equal cross-section
- 10
- Sheathing stripping length
- 100 mm
- Storage space
- Standard
Dimensions And Weights
- Net weight
- 82.7 g
Electrical Data
- Current per signal
- 2 A
- Electrical isolation available
- Yes
- Max. current-carrying capacity per slot
- 4 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 10 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Fire behaviour
- V-0
- LED
- No
- Plugging cycles
- ≤ 50
- Pollution severity
- 2
- Protection degree
- IP67
Material Data
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Hood sealing material
- Viton
- Housing colour
- grey, RAL 7032
- Housing main material
- Pocan
- Material of distributor
- Plastic
Technical Data Cable
- Conductor O.D., max.
- 1.6 mm
- Conductor O.D., min.
- 1.2 mm
- Suitable for cable carriers
- No
