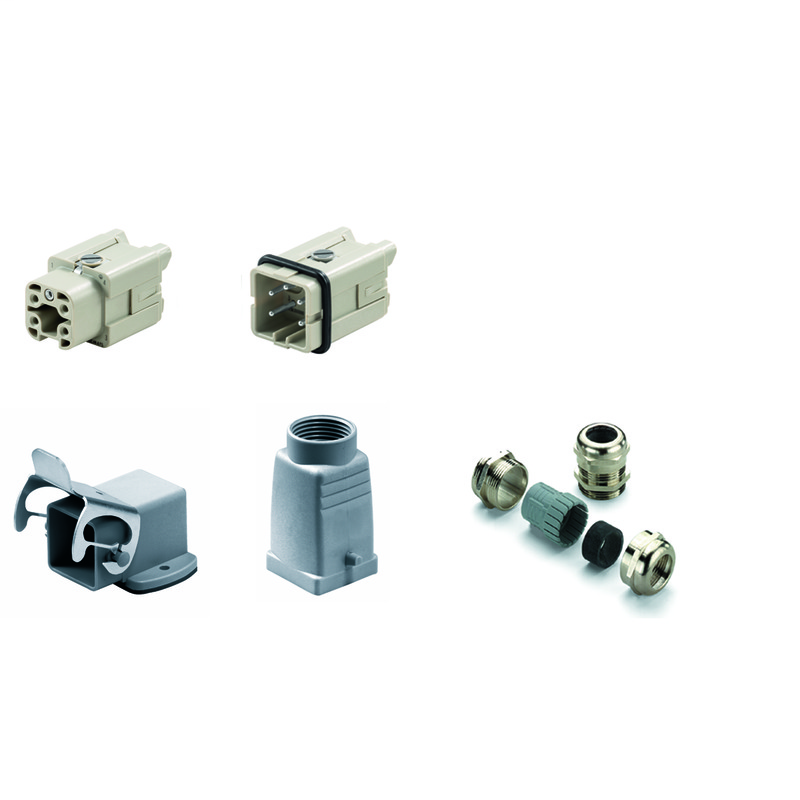

Weidmuller 1712610000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1712610000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
Classifications
- eClass 10.0
- 27-44-02-92
- eClass 9.0
- 27-44-02-92
- eClass 9.1
- 27-44-01-90
- ETIM 6.0
- EC002943
- ETIM 7.0
- EC002943
- UNSPSC
- 30-21-18-01
Connection Data
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.5 mm²
Design
- Product family
- HDC kits
- Product type
- Kit
- Type of connection
- Screw connection
Dimensions And Weights
- Net weight
- 147.78 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
General Data
- Cable glands
- PG 11
- Connection type PE
- Screw connection
- Material
- diecast aluminium
- Number of poles
- 4
- Rated current (DIN EN 61984)
- 16 A
- Rated voltage (DIN EN 61984)
- 400 V
- Series
- HA
- Size
- 1
General Descriptions
- Number of poles
- 4
- Size
- 1
- Size of cable entries
- PG 11
Material
- Colour
- grey
- Material
- diecast aluminium
Temperatures
- Limit temperature
- -40 undefined ... 100 undefined
Version
- Conductor cross-section, max.
- 2.5 mm²
- Conductor cross-section, min.
- 0.5 mm²
- Material
- diecast aluminium
- Max. torque for main contact
- 0.55 Nm
- Min. torque for main contact
- 0.5 Nm
- Size
- 1
- Surface finish
- Powder coating
- Type of connection
- Screw connection
