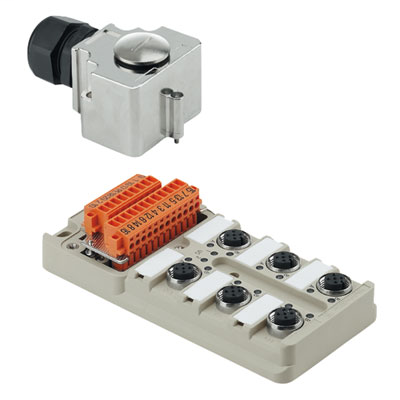

Weidmuller 1705933000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1705933000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 6.2
- 27-06-91-90
- eClass 7.1
- 27-06-91-90
- eClass 8.1
- 27-06-91-90
- eClass 9.0
- 27-06-91-90
- eClass 9.1
- 27-44-01-08
- ETIM 3.0
- EC001856
- ETIM 4.0
- EC002585
- ETIM 5.0
- EC002585
- ETIM 6.0
- EC002585
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Height
- 55 mm
- Height (inches)
- 2.165 inch
- Length
- 127 mm
- Length (inches)
- 5 inch
- Net weight
- 533 g
- Width
- 60 mm
- Width (inches)
- 2.362 inch
General Data
- Cable gland
- M 25
- Clamping range, rated connection, max.
- 1.5 mm²
- Clamping range, rated connection, min.
- 0.08 mm²
- Conductor O.D.
- 14 - 18mm
- Conductor O.D., max.
- 18 mm
- Conductor O.D., min.
- 14 mm
- connection thread
- M12
- Connection type PE
- Screw connection
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Current per signal
- 2 A
- Distributor outlet
- Hood version with M25 outlet
- Electrical isolation available
- Yes
- Fire behaviour
- V-0
- Hood sealing material
- Foamed PUR
- Housing colour
- Silver
- Housing main material
- Pocan (base module), Zinc diecast (hood)
- Insulation resistance
- 10
- LED
- Yes
- LED colour for indicating operation
- green
- LED colour for I/O function
- yellow
- LED initiator
- Yes
- Max. current-carrying capacity per slot
- 4 A
- No. of poles
- 4
- Number of contact sockets
- 6
- Plugging cycles
- ≤ 50
- Pollution severity
- 3
- Rated voltage , max.
- 30 V
- Rated voltage , min.
- 10 V
- Screw socket
- CuZn, nickel-plated
- Storage space
- gross
- Test voltage
- 1 kV
- Total current
- 10 A
General Ordering Data
- GTIN (EAN)
- 4032248184545
- Order No.
- 1705933000
- Qty.
- 1 pc(s).
- Type
- SAI-6-MHD-4P M12
- Version
- SAI Passive, Sensor-actuator passive distributor, M12, Hood version with M25 outlet, Yes
Temperatures
- Operating temperature
- -20 - 90°C
- Operating temperature range, max.
- 90 °C
- Operating temperature range, min.
- -20 °C
