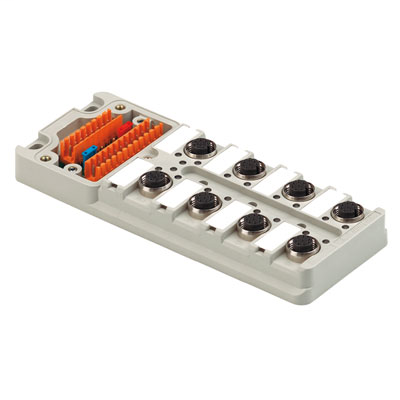

Weidmuller 1701251000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAI Passive, Sensor-actuator passive distributor, M12, Hood version, YesSAI-8-M 5P M12 UT
Weidmuller 1701251000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
- UNSPSC
- 30-21-18-01
Connection Data
- Cable glands
- M 20
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.08 mm²
- Conductor O.D., max.
- 12 mm
- Conductor O.D., min.
- 6 mm
- Distributor outlet
- Hood version
- Sheathing stripping length
- 100 mm
- Storage space
- Standard
Dimensions And Weights
- Depth
- 152 mm
- Depth (inches)
- 5.984 inch
- Net weight
- 190.5 g
Electrical Data
- Current per signal
- 2 A
- Electrical isolation available
- Yes
- Insulation strength
- 109 Ω
- Max. current-carrying capacity per slot
- 4 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 10 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Connection thread
- M12
- Fire behaviour
- V-0
- LED
- Yes
- LED colour for indicating operation
- green
- LED colour for I/O function
- yellow
- LED initiator
- Yes
- Number of contact sockets
- 8
- Number of poles
- 5
- Plugging cycles
- ≤ 50
- Pollution severity
- 3
- Protection degree
- IP68
Material Data
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Hood sealing material
- Viton
- Housing colour
- grey, RAL 7032
- Housing main material
- Pocan
- Material of distributor
- Plastic
- Screw socket
- Nickel-plated CuZn
Standards
- Certificate no. (cULus)
- E141197
Technical Data Cable
- Conductor O.D., max.
- 12 mm
- Conductor O.D., min.
- 6 mm
- Number of poles
- 5
- Suitable for cable carriers
- No
Temperatures
- Operating temperature
- -20 - 90°C
- Operating temperature, max.
- 90 °C
- Operating temperature, min.
- -20 °C
- Operating temperature range, max.
- 90 °C
- Operating temperature range, min.
- -20 °C
