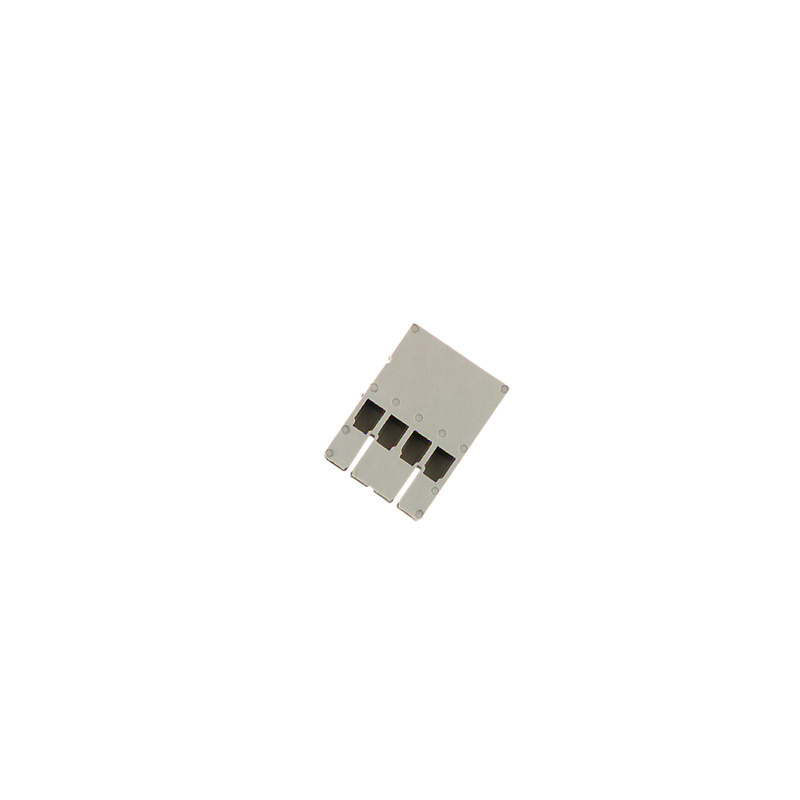

Weidmuller 1698190000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z-series, Plug-in connector, Rated cross-section: 1.5 mm², Plug-in connection, dark beige, PlugSTGH 4 ZRV1.5
Weidmuller 1698190000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Plug
- Type of mounting
- Plugged
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-92
- eClass 9.0
- 27-14-11-92
- eClass 9.1
- 27-14-11-92
- ETIM 6.0
- EC002848
- ETIM 7.0
- EC002848
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 1 mm²
- Clamping range, min.
- 0.5 mm²
- Connection direction
- Inclined / angled
- Number of connections
- 4
- Stripping length
- 4 mm
- Type of connection
- Plug-in connection
- Wire connection cross section, finely stranded, max.
- 1 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 23 mm
- Depth (inches)
- 0.906 inch
- Height
- 16.8 mm
- Height (inches)
- 0.661 inch
- Net weight
- 1.092 g
- Width
- 5 mm
- Width (inches)
- 0.197 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Rated cross-section
- 1.5 mm²
- Rated current
- 4 A
- Rated impulse withstand voltage
- 1.5 kV
- Rated voltage
- 63 V
- Standards
- IEC 60947-7-1, IEC 61984
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- Number of clamping points per level
- 4
- Number of levels
- 1
- PE connection
- No
- Version
- Plug housing, in closed state
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
