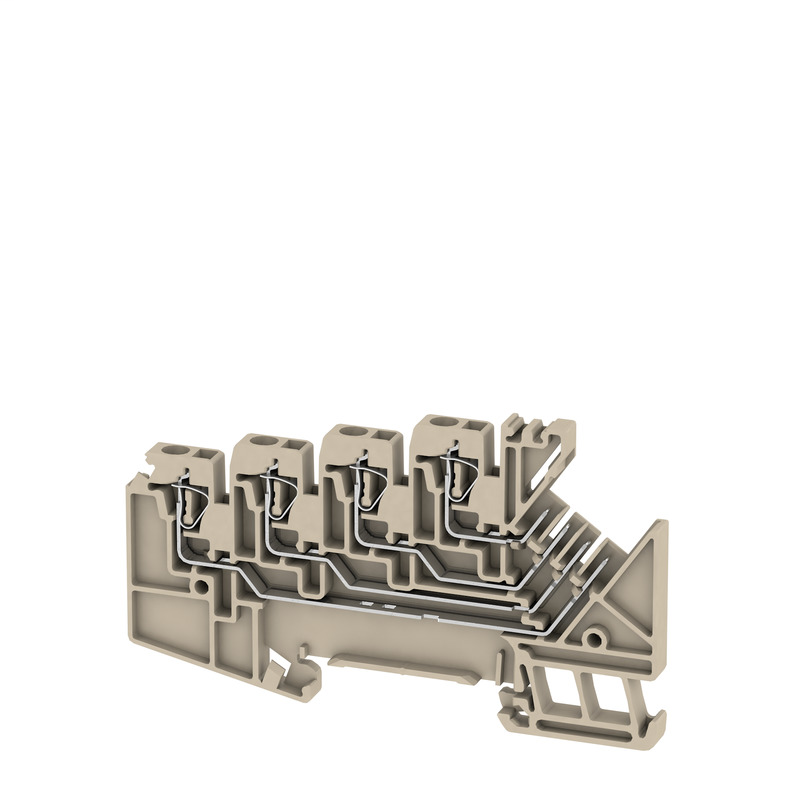

Weidmuller 1698161001
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z-series, Feed-through terminal, Multi-tier modular terminal, Rated cross-section: 1.5 mm², Tension-clamp connection, Direct mountingZRV 1.5
Weidmuller 1698161001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Number of connections
- 8
- Type of connection
- Tension-clamp connection
Dimensions
- TS 35 offset
- 46 mm
Dimensions And Weights
- Depth
- 52 mm
- Depth (inches)
- 2.047 inch
- Depth including DIN rail
- 52.5 mm
- Height
- 89.5 mm
- Height (inches)
- 3.524 inch
- Net weight
- 14.56 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Rated cross-section
- 1.5 mm²
- Rated current
- 4 A
- Rated voltage
- 63 V
- Standards
- IEC 61984, In accordance with IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- Number of clamping points per level
- 2
- Number of levels
- 4
- PE connection
- No
- Rail
- TS 35
- Version
- 4 tension-clamp connections - 4 plug-in connections, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 14 AWG
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring max. (UR)
- 14 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
- Current size C (UR)
- 10 A
- Voltage size C (UR)
- 150 V
