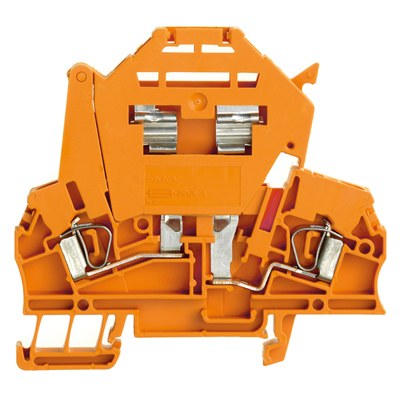

Weidmuller 1686470000

Additional Technical Data

• Explosion-tested version
  • No
• Installation advice
  • Direct mounting
• Number of similar terminals
  • 1
• Open sides
  • right
• Type of mounting
  • Snap-on

Approvals

• Approvals
  • CE, CSA, DNV GL, EAC, KEMAKEUR, LLOYDSREG, MARITREG, RINA, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-16
• eClass 9.0
  • 27-14-11-16
• eClass 9.1
  • 27-14-11-16
• ETIM 6.0
  • EC000899
• ETIM 7.0
  • EC000899
• UNSPSC
  • 30-21-18-11

Conductors For Clamping (Additional Connection)

• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
  • 2.5 mm²

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.13 mm²
• Connection direction
  • Inclined / angled
• Gauge to IEC 60947-1
  • A3
• Number of connections
  • 2
• Stripping length
  • 10 mm
• Type of connection
  • Tension-clamp connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 4 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 200039-1152892
• Current size B (CSA)
  • 15 A
• Current size C (CSA)
  • 15 A
• Current size D (CSA)
  • 15 A
• Voltage size B (CSA)
  • 600 V
• Voltage size C (CSA)
  • 600 V
• Voltage size D (CSA)
  • 150 V
• Wire cross section max. (CSA)
  • 12 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 73 mm
• Depth (inches)
  • 2.874 inch
• Depth including DIN rail
  • 74 mm
• Height
  • 79.5 mm
• Height (inches)
  • 3.13 inch
• Net weight
  • 20.98 g
• Width
  • 7.9 mm
• Width (inches)
  • 0.311 inch

Fuse Terminals

• Cartridge fuse
  • G-Si. 5 x 20
• Operating voltage, max.
  • 500 V
• Power loss for overload and short-circuit protection for a composite arrangement
  • 1.6 W at 6.3 A @ 37°C
• Power loss for overload and short-circuit protection for an individual arrangement
  • 2.5 W at 6.3 A @ 30°C
• Power loss for short-circuit protection only for a composite arrangement
  • 4.0 W at 6.3 A @ 59°C
• Power loss for short-circuit protection only for an individual arrangement
  • 4.0 W at 6.3 A @ 59°C

Material Data

• Colour
  • orange
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Rating Data

• Current at maximum wires
  • 6.3 A
• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 0.77 W
• Rated cross-section
  • 2.5 mm²
• Rated current
  • 6.3 A
• Rated impulse withstand voltage
  • 6 kV
• Rated voltage
  • 250 V
• Rated voltage to adjoining terminal
  • 500 V
• Standards
  • IEC 60947-7-3
• Volume resistance according to IEC 60947-7-x
  • 1.33 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• N-function
  • No
• Number of clamping points per level
  • 2
• Number of levels
  • 1
• Number of potentials
  • 1
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Rail
  • TS 35
• Version
  • Tension-clamp connection, Fuse cartridge, Without LED, for plug-in cross-connector, One end without connector

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Continuous operating temp., min.
  • -50 °C
• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 12 AWG
• Conductor size Factory wiring min. (UR)
  • 26 AWG
• Conductor size Field wiring max. (UR)
  • 12 AWG
• Conductor size Field wiring min. (UR)
  • 26 AWG
• Current size C (UR)
  • 10 A
• Voltage size C (UR)
  • 300 V
