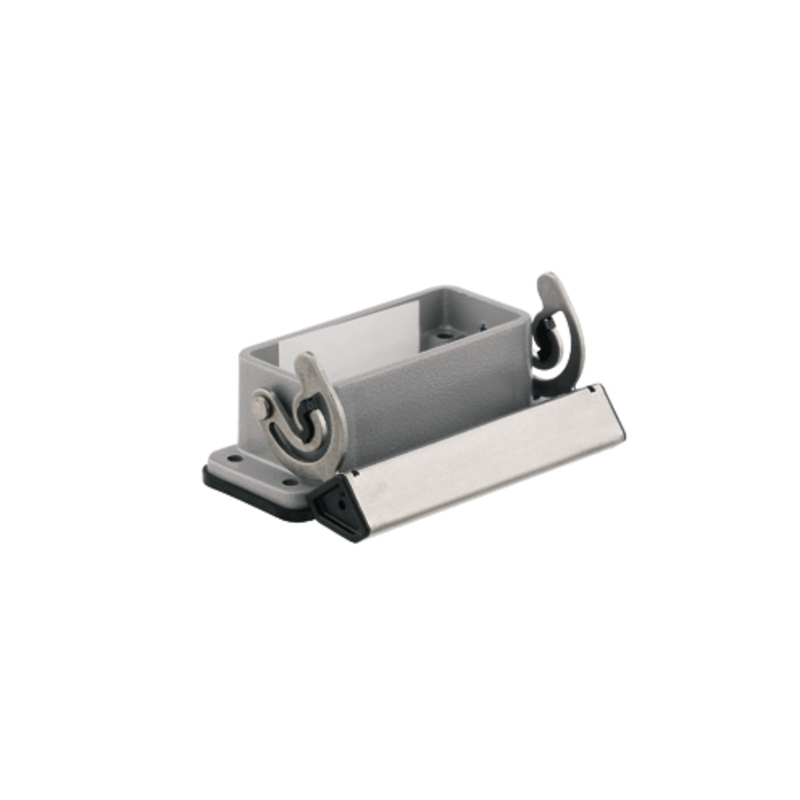

Weidmuller 1664040000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Weidmuller 1664040000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-02-02
- eClass 9.0
- 27-44-02-02
- eClass 9.1
- 27-44-02-02
- ETIM 6.0
- EC000437
- ETIM 7.0
- EC000437
- UNSPSC
- 30-21-18-01
Design
- Product family
- HDC enclosures
- Product type
- Enclosures
- Type
- Bulkhead (feed-through)
Dimensions
- Height of base B1
- 5 mm
- Height of housing B
- 25 mm
- Hole pitch length A2
- 70 mm
- Total length housing
- 63 mm
- Width base C1
- 32 mm
- Width housing C
- 29.5 mm
Dimensions And Weights
- Depth
- 84 mm
- Depth (inches)
- 3.307 inch
- Height
- 25 mm
- Height (inches)
- 0.984 inch
- Mounting dimension - height
- 17.5 mm
- Mounting dimension - width
- 70 mm
- Net weight
- 87 g
- Width
- 53.7 mm
- Width (inches)
- 2.114 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
General Data
- EMC housings
- No
- Housing main material
- diecast aluminium
- Material of locking element
- Stainless steel, rust-proof
- Protection degree
- IP65
- Surface finish
- Powder coating
- Tightening torque
- 0.5 Nm
General Descriptions
- Protection degree
- IP65
- Size
- 2
- Type of locking
- End-locking clamp
Material
- Colour
- grey
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Clamp version
- End-locking clamp
- Cover
- without cover
- Design
- Standard
- Design of housing
- Open base
- Design of locking system
- End-locking clamp, lower side
- Sealing
- NBR
- Size
- 2
- Suitable for ModuPlug
- No
- Tightening torque
- 0.5 Nm
- Top part/bottom part/lid
- lower part
- Type
- Bulkhead (feed-through)
