Weidmuller 1632360000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

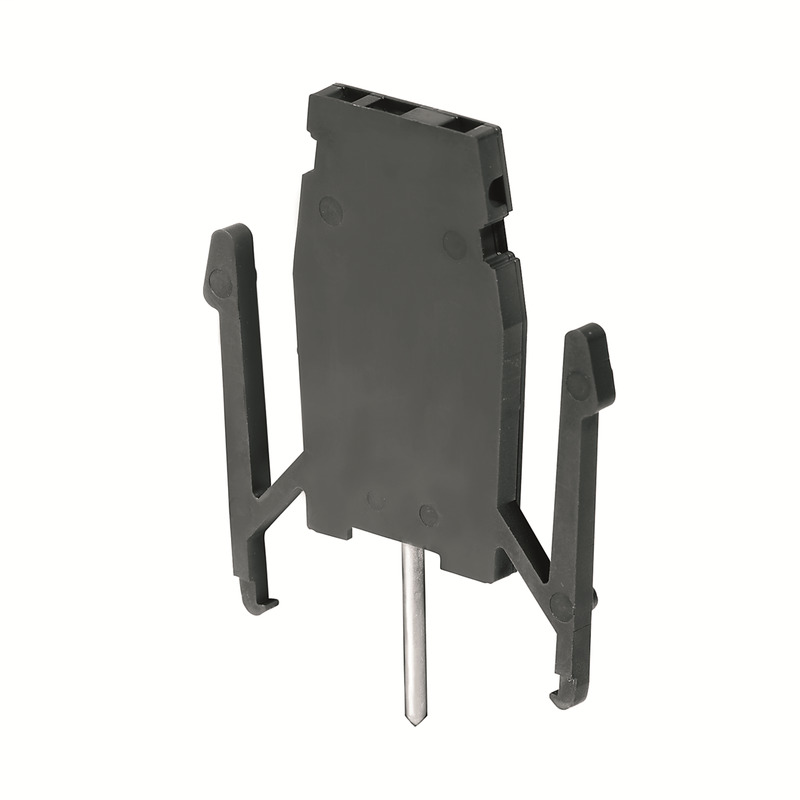

W-Series, Test adapterWTA 3/ZA WDU4
Weidmuller 1632360000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
- 1.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 1.5 mm²
Additional Technical Data
- Installation advice
- Direct mounting
- With snap-in pegs
- Yes
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-48
- eClass 9.0
- 27-14-11-48
- eClass 9.1
- 27-14-11-48
- ETIM 6.0
- EC002555
- ETIM 7.0
- EC002555
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Clamping screw
- M 2.5
- Number of connections
- 1
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.3 Nm
- Tightening torque, min.
- 0.3 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 1 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions
- Height with TS 35
- 107.6 mm
- Pitch in mm (P)
- 6 mm
Dimensions And Weights
- Depth
- 83.9 mm
- Depth (inches)
- 3.303 inch
- Height
- 66.1 mm
- Height (inches)
- 2.602 inch
- Net weight
- 9.31 g
- Width
- 6 mm
- Width (inches)
- 0.236 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Material
- PA 66
- UL 94 flammability rating
- V-2
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Rated cross-section
- 1.5 mm²
- Rated current
- 6 A
- Rated voltage
- 250 V
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
