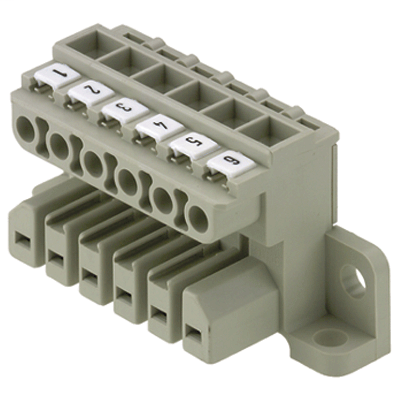

Weidmuller 1612970000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638
• UNSPSC
  • 30-21-18-10

Conductors Suitable For Connection

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.32 mm²
• Flexible, max. H05(07) V-K
  • 4 mm²
• Flexible, min. H05(07) V-K
  • 0.5 mm²
• Max. clamping range
  • 4 mm²
• Plug gauge in accordance with EN 60999 a x b; ø
  • 2.8 mm x 2.2 mm
• Solid, max. H05(07) V-U
  • 4 mm²
• Solid, min. H05(07) V-U
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 22
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 4 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 4 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 32.5 mm
• Depth (inches)
  • 1.28 inch
• Height
  • 24 mm
• Height (inches)
  • 0.945 inch
• Net weight
  • 35.8 g

Material Data

• Colour
  • Pebble grey
• Colour chart (similar)
  • RAL 7032
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • CuZn
• Contact surface
  • silver-plated
• GWFI
  • 960 °C
• GWIT
  • 960 °C
• Insulating material
  • Wemid (PA)
• Insulating material group
  • I
• Insulation strength
  • ≥ 108 Ω
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Crimp form A for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Packing

• Packaging
  • Box
• VPE height
  • 192 mm
• VPE length
  • 51 mm
• VPE width
  • 77 mm

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 25 A
• Rated current (Use group D / CSA)
  • 25 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Wire cross-section, AWG, max.
  • AWG 12
• Wire cross-section, AWG, min.
  • AWG 20

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 28 A
• Rated current, max. number of poles (Tu=40°C)
  • 24 A
• Rated current, min. number of poles (Tu=20°C)
  • 32 A
• Rated current, min. number of poles (Tu=40°C)
  • 32 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 6 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 500 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 500 V
• Short-time withstand current resistance
  • 3 x 1s with 340 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1977

• AWG-conductor, max. (UL 1977)
  • 12
• AWG-conductor, min. (UL 1977)
  • 22
• Rated current (UL 1977)
  • 25 A
• Rated voltage (UL 1977)
  • 600 V

System Parameters

• Can be coded
  • Yes
• Clamping screw
  • M 3
• Conductor outlet direction
  • 90°
• L1 in inches
  • 1.378 inch
• L1 in mm
  • 35 mm
• Number of poles
  • 6
• Number of rows
  • 1
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.276 inch
• Pitch in mm (P)
  • 7 mm
• Product family
  • OMNIMATE Power - series STV
• Screwdriver blade
  • 0.6 x 3.5
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 9 mm
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Volume resistance
  • 1.80 mΩ
• Wire connection method
  • Clamping yoke connection
