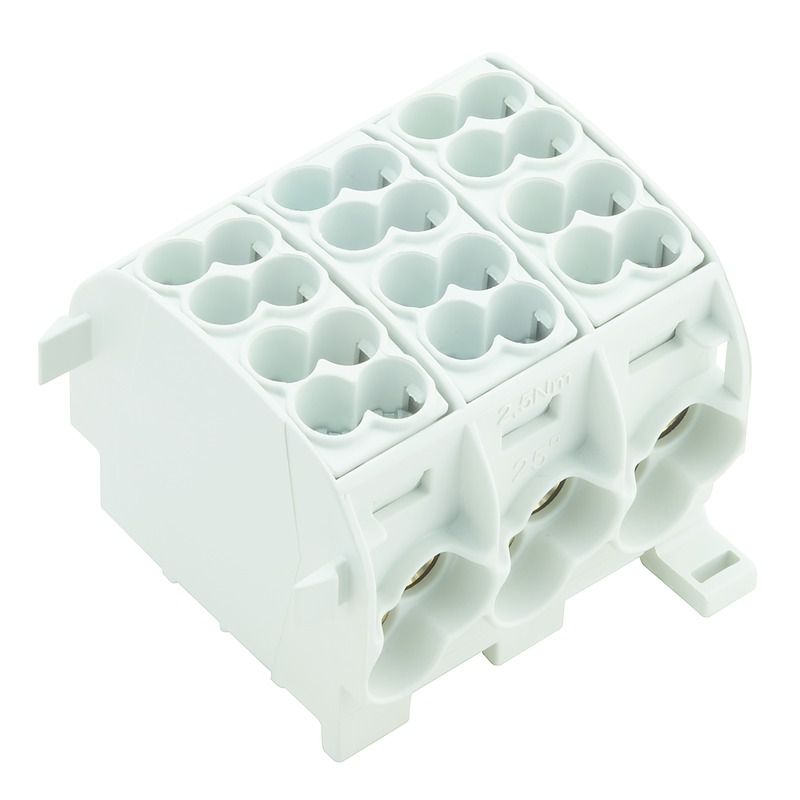

Weidmuller 1561130000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plateWPD 301 2X25/2X16 3XGY
Weidmuller 1561130000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Terminal rail / mounting plate
- Open sides
- closed
- Snap-on
- Yes
- Type of mounting
- Snap-on
- With snap-in pegs
- Yes
Approvals
- Approvals
- cURus, EAC, VDE
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Connection direction
- on side
- Type of connection
- Screw connection
Dimensions And Weights
- Depth
- 49.3 mm
- Depth (inches)
- 1.941 inch
- Height
- 55.7 mm
- Height (inches)
- 2.193 inch
- Net weight
- 204 g
- Width
- 53.4 mm
- Width (inches)
- 2.102 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- Light Grey
- Material
- Wemid
- UL 94 flammability rating
- V-0
Pe Rating Data
- PEN function
- No
Rating Data
- Current at maximum wires
- 152 A
- Rated AC voltage
- 1,000 V AC
- Rated current
- 152 A
- Rated DC voltage
- 1,000 V DC
- Rated voltage
- 1,000 V
- Standards
- IEC 60947-7-1, IEC 61238-1, VDE 0603-2
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 6
- Number of levels
- 1
- Number of potentials
- 3
- Number of potentials per tier
- 3
- PE connection
- No
- PE function
- No
- PEN function
- No
- Version
- Screw connection
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
