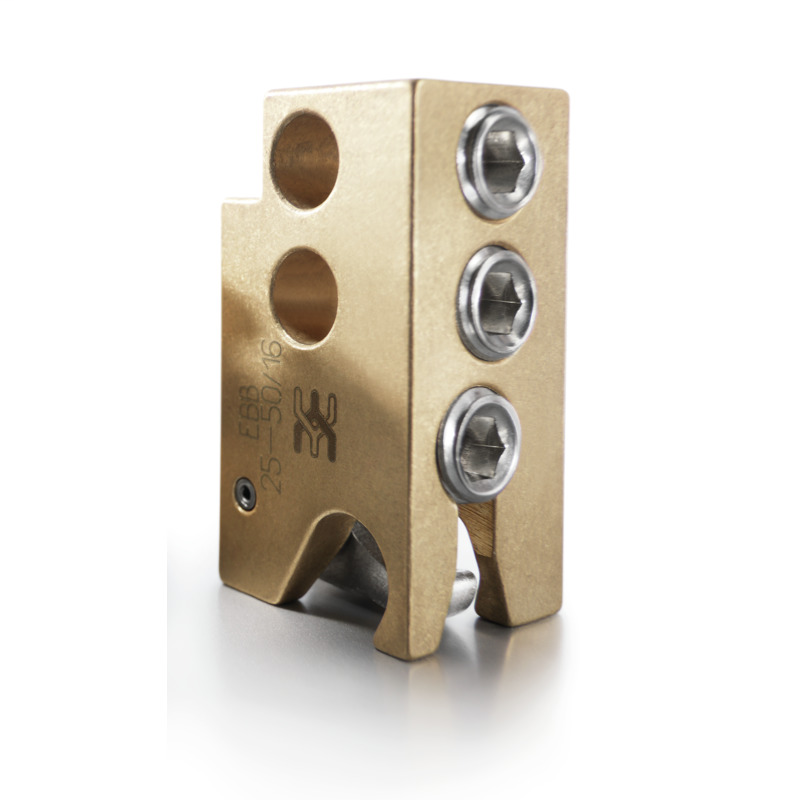

Weidmuller 1547490000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WPAK, Potential collector block, Rated cross-section: Screw connection, Direct mountingEBB 25-50/16
Weidmuller 1547490000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- when screwed in
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Additional Connection)
- Clamping range, further connection, max.
- 16 mm²
- Clamping range, further connection, min.
- 6 mm²
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 50 mm²
- Clamping range, min.
- 10 mm²
- Clamping screw
- M 6
- Connection direction
- on side
- Number of connections
- 3
- Stripping length
- 20 mm
- Tightening torque, min.
- 5 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 50 mm²
- Wire connection cross-section, finely stranded, min.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 10 mm²
Dimensions And Weights
- Depth
- 24 mm
- Depth (inches)
- 0.945 inch
- Height
- 45.5 mm
- Height (inches)
- 1.791 inch
- Net weight
- 122.256 g
- Width
- 20 mm
- Width (inches)
- 0.787 inch
Material Data
- Colour
- Brass coloured
- Material
- Brass
Product Information
- Product information
- Qualfiedin acc. IEC 60947-7-2, Can be used for functional equipotential bonding and protective equipotentail bonding Mounting on cable trench with M6x9 screw
Rating Data
- Pollution severity
- 3
Temperatures
- Ambient temperature
- -40°C bis +75°C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
