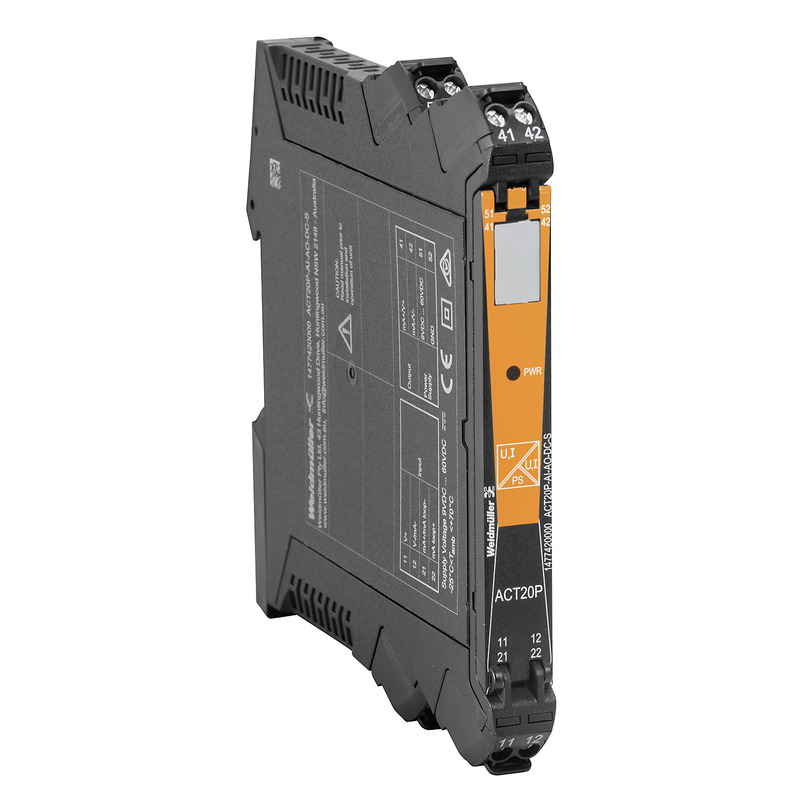

Signal converter/isolator, universal, Input : I/U universal, Output : I/U universalACT20P-AI-AO-AC-S
Weidmuller 1545720000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-90
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.4 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
Dimensions And Weights
- Depth
- 113.7 mm
- Depth (inches)
- 4.476 inch
- Height
- 119.2 mm
- Height (inches)
- 4.693 inch
- Net weight
- 80 g
- Weight
- 80 g
- Width
- 12.5 mm
- Width (inches)
- 0.492 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Configuration
- DIP switch, Keys and LED display, with reference voltage/current sources
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Linearity
- < ± 0.1 % of signal range, Typ. ± 0.05 % of signal range
- Long-term drift
- 0.1 % / 10.000 h
- Power consumption, typ.
- 3 W
- Rail
- TS 35
- Step response time
- 350 ms
- Temperature coefficient
- < 0.05 % / °C
- Voltage supply
- 90…264 V AC, 47 to 63 Hz
Input
- Input current
- configurable, 0-22 mA (min. measurement range 4 mA)
- Input resistance, current
- 100 Ω
- Input resistance, voltage
- ≥ 1 MΩ
- Input voltage
- configurable, 0-11 V (min. measurement range 2 V)
- Number of inputs
- 1
- Resolution
- 3.5 µA / 1.76 mV per bit
- Sensor supply
- 24 V DC
Insulation Coordination
- EMC standards
- IEC 61326-1
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Insulation voltage
- 2 kV inputs / outputs
- Pollution severity
- 2
- Surge voltage category
- III
Output
- load impedance current
- ≤ 1kΩ
- load impedance voltage
- ≥ 500 kΩ
- Number of outputs
- 1
- Offset voltage
- ≤ 20 mV
- Output current
- Adjustable, 0...22 mA, Output range, min, 4 mA
- Output voltage, note
- Adjustable, 0...11 V, Output range, min, 2 V
Temperatures
- Humidity
- 10…90 %, no condensation
- Operating temperature
- -20 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
