Description

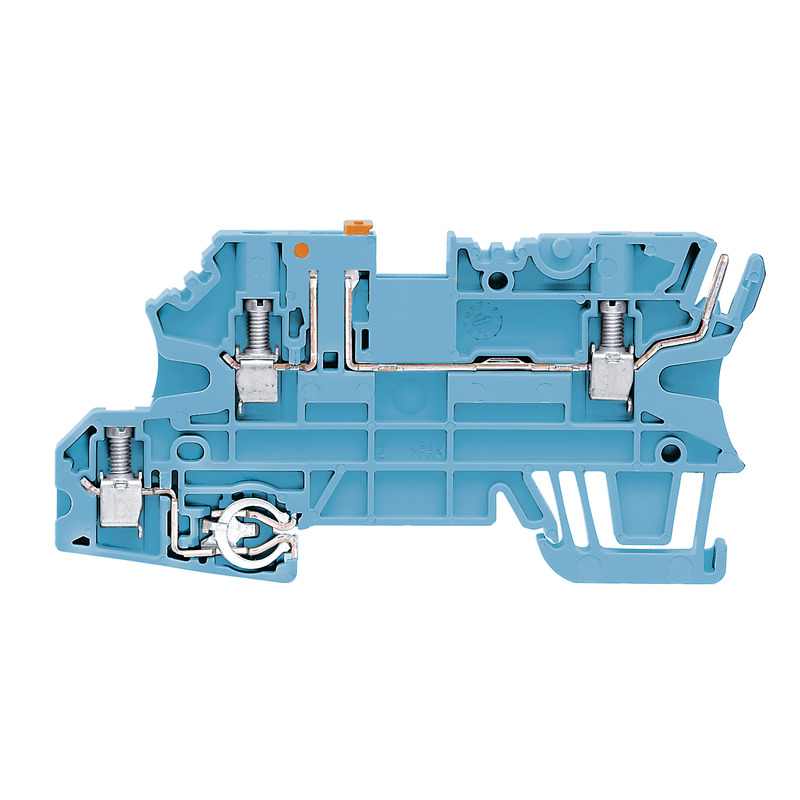

W-Series, Test-disconnect terminal, PE terminal, Rated cross-section: 2.5 mm², Screw connectionWMF 2.5 DI BLZ PE BL
Weidmuller 1537890000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
Conductors For Clamping (Additional Connection)
- Connection type, additional connection
- Plug-in connection
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping screw
- M 3
- Connection cross-section, stranded, max.
- 4 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A3
- Number of connections
- 4
- Stripping length
- 10 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Type of connection 2
- Plug-in connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 44.5 mm
- Depth (inches)
- 1.752 inch
- Depth including DIN rail
- 45 mm
- Height
- 90 mm
- Height (inches)
- 3.543 inch
- Net weight
- 13.2 g
- Width
- 5.08 mm
- Width (inches)
- 0.2 inch
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Material Data
- Colour
- blue
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 20 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Rated current
- 20 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 250 V
- Standards
- IEC 60947-7-2, IEC 61984, In accordance with IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Number of levels
- 2
- Rail
- TS 35
- Version
- 2 screw connections - 1 plug-in connection, Spacer, With PE connection, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
