Weidmuller 1537310000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

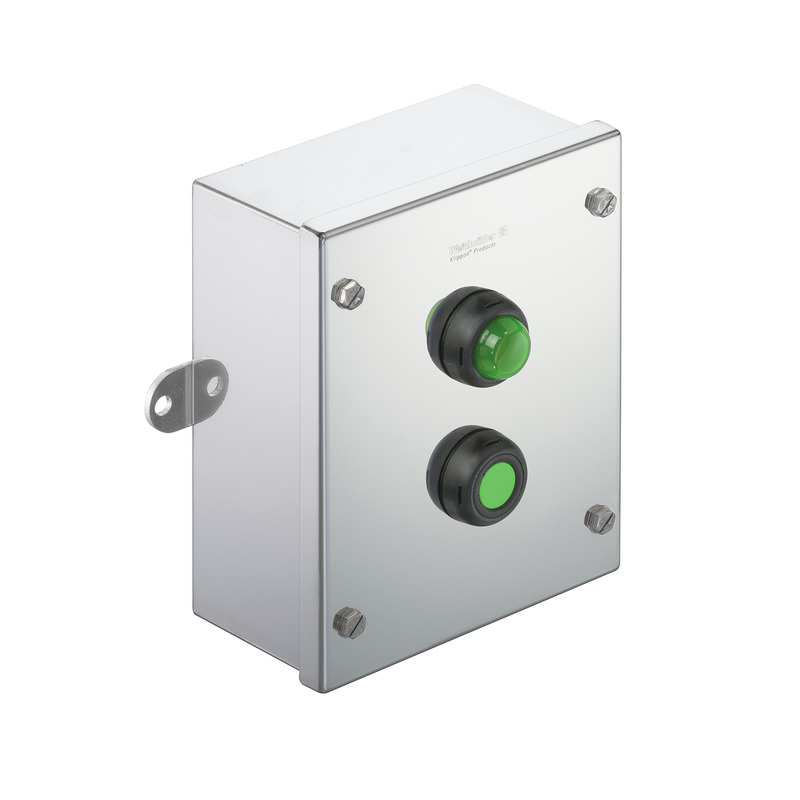

Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON STB 2.1 SS, Stainless steel 1.4404 (316L), Light module - green, Pushbutton - green, 1 NC contact, 1 NO contacts, -55 °C...+55 °C, IP54, IP66KLIPPON CS STB 2.1-2
Weidmuller 1537310000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC, IECEXITA, MARITREG, TUEVNATEX
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- TÜV 14 ATEX 7606 X
- Certificate no. assembled enclosure (IECEx)
- IECEx ITA 14.0013X
- Certificate No. (MARITREG)
- 15.40082.250
Classifications
- eClass 10.0
- 27-18-05-02
- eClass 9.0
- 27-18-05-02
- eClass 9.1
- 27-18-05-90
- ETIM 6.0
- EC002503
- ETIM 7.0
- EC002503
Dimensions And Weights
- Depth
- 81.5 mm
- Depth (inches)
- 3.209 inch
- Depth with add-on components
- 103 mm
- Height
- 190 mm
- Height (inches)
- 7.48 inch
- Mounting dimension - width
- 145 mm
- Net weight
- 2,015 g
- Width
- 150 mm
- Width (inches)
- 5.905 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Information
- 1 Position in enclosure
- Light module - green
- 2 Position in enclosure
- Pushbutton - green
- Actuator colour
- green
- Actuators
- Pushbutton
- Cable gland
- 1460070000
- Cable gland clamping area, max.
- 18 mm
- Cable gland clamping area, min.
- 10 mm
- Contact design
- 1 NC contact, 1 NO contacts
- Drill holes side B
- 1 x M25
- Earth stud torque
- 7.5 Nm
- Enclosure seal material
- Silicone (VMQ)
- External earth
- M6 earthing studs, stainless steel
- Illumination module colour
- green
- Impact resistance
- 4 joules in acc. with IEC60079-0
- Internal earth
- M6 x 10 earthing studs integrated in the lid, stainless steel
- Lid attachment
- M5 hexagonal screw with slot and 10mm distance across flats
- Marking
- II 2 G Ex d e IIC T* Gb, II 2 D Ex tb IIIC T*°C Db
- Material
- Stainless steel 1.4404 (316L)
- Operating current at 40°C ambient temperature, max.
- 1.5 mm² - T6 10 A, 1.5 mm² - T5 16 A, 2.5 mm² - T6 16 A
- Operating current at 55°C ambient temperature, max.
- 1.5 mm² - T4 16 A, 1.5 mm² - T5 10 A, 2.5 mm² - T5 16 A
- Operating voltage, max.
- 250 V
- Reference product
- 1002730000
- Seal material of operating and display elements
- EPDM
- Surface finish
- Mirror polished
- Temperature class
- T4, T5, T6
- Torque for lid screws
- 2.5 Nm
- Type of mounting
- Wall mounting
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
Housing
- Drill holes side B
- 1 x M25
- Material
- Stainless steel 1.4404 (316L)
