Weidmuller 1531930000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

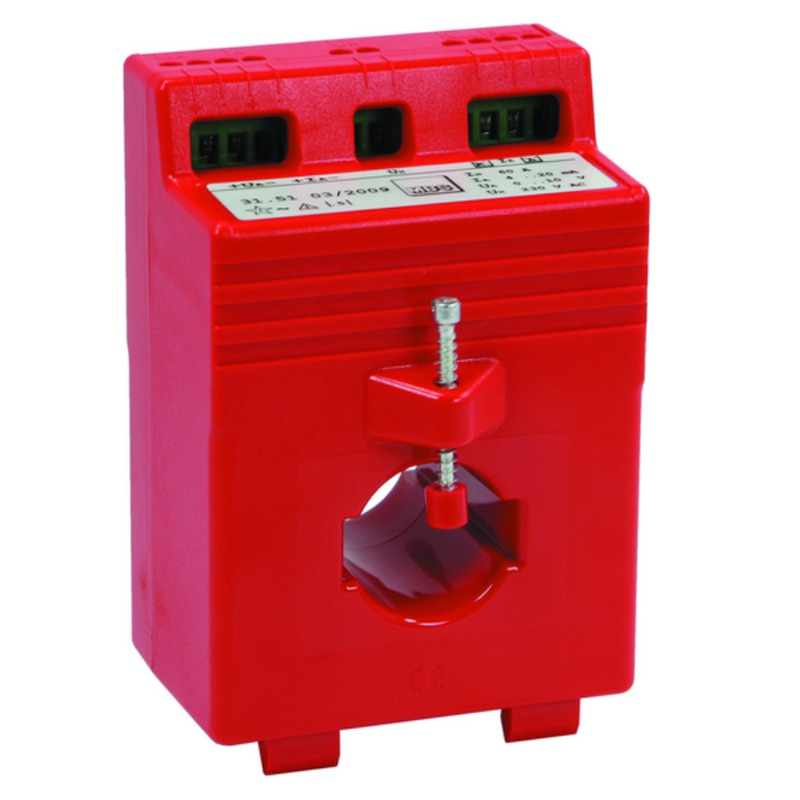

Weidmuller 1531930000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 6.2
- 27-21-09-02
- eClass 7.1
- 27-21-09-02
- eClass 8.1
- 27-21-09-02
- eClass 9.0
- 27-21-09-02
- eClass 9.1
- 27-21-09-02
- ETIM 5.0
- EC002048
- ETIM 6.0
- EC002048
Dimensions And Weights
- Depth
- 71 mm
- Depth (inches)
- 2.795 inch
- Height
- 117.8 mm
- Height (inches)
- 4.638 inch
- Net weight
- 250 g
- Width
- 80 mm
- Width (inches)
- 3.15 inch
Dimensions Of Live Conductors
- Rail
- 30 x 10 mm
- Round conductor
- 28 mm
Electrical Attributes
- Load, rated power
- 1 VA
- Primary current
- 250 A
- Secondary current
- 4 mA
- Tolerance class
- 0,5
General Data
- Accuracy
- Basic accuracy: < ±0.5°
- Galvanic isolation
- between input/output
- Power consumption, max.
- 1.5 W
- Step response time
- 450 ms
- Supply voltage
- 24 V DC ± 15 %
General Ordering Data
- GTIN (EAN)
- 4050118337204
- Order No.
- 1531930000
- Qty.
- 1 pc(s).
- Type
- CMA-3151-250-AO-24DC-05
- Version
- Current-measuring transducer, Primary current: 250 A, Secondary current : 4 mA, 1 VA, Tolerance class: 0,5
Insulation Coordination
- Galvanic isolation
- between input/output
- Test voltage
- 4 kV
Output (Analogue)
- Load resistance current
- ≤ 500 Ω
- Load resistance voltage
- ≥ 10 kΩ
- Output current
- 0(4)...20 mA
- Output voltage
- 0(2)...10 V
Technical Data
- Insulation class
- E
- Nominal frequency
- 50 Hz
- Thermal rated continuous current I
- 1.5 x I
