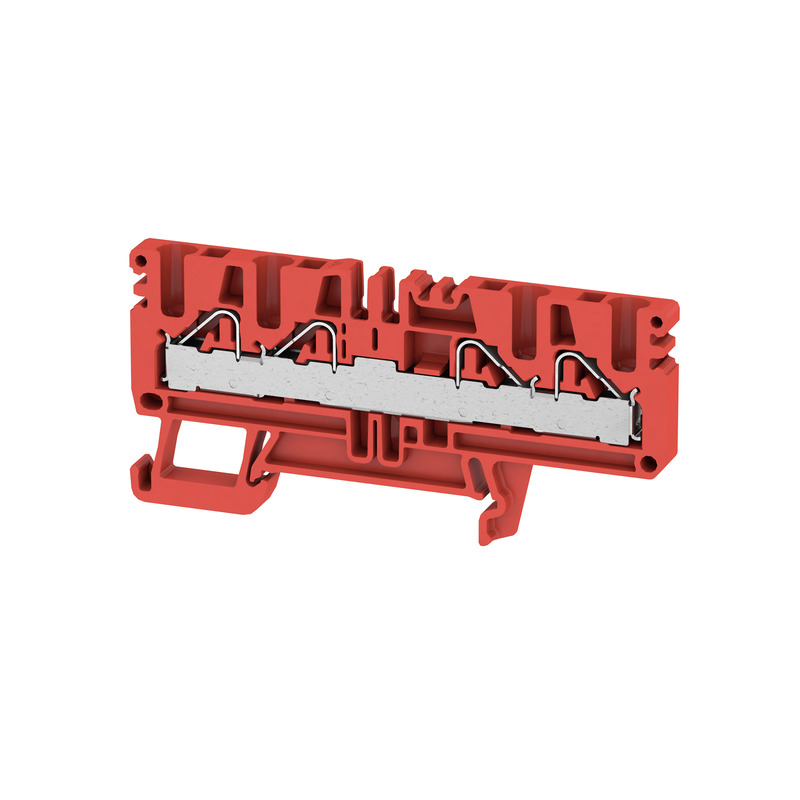

Weidmuller 1529890000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, redPDU 2.5/4/4AN RT
Weidmuller 1529890000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- Blade size
- 3.0 x 0.5 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, finely stranded, max.
- 4 mm²
- Connection cross-section, finely stranded, min.
- 0.21 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A3
- Number of connections
- 4
- Stripping length
- 12 mm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 38 mm
- Depth (inches)
- 1.496 inch
- Depth including DIN rail
- 39 mm
- Height
- 78.5 mm
- Height (inches)
- 3.091 inch
- Net weight
- 10.82 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
Material Data
- Colour
- red
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 800 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 4
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- PUSH IN connection, 4 connections, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring max. (cURus)
- 10 AWG
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring max. (cURus)
- 10 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 30 A
- Voltage size C (cURus)
- 600 V
- Wire cross section max. (cURus)
- 10 AWG
- Wire cross section min. (cURus)
- 26 AWG
