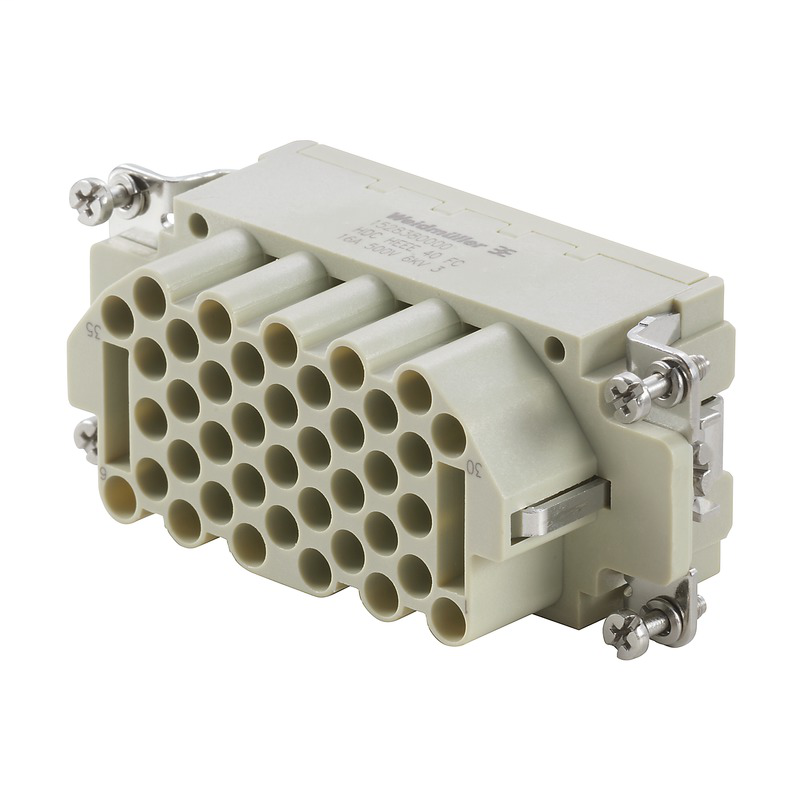

Weidmuller 1528380000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HDC insert, Female, 500 V, 16 A, Number of poles: 40, Crimp connection, Size: 6HDC HEEE 40 FC
Weidmuller 1528380000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-05
- eClass 9.0
- 27-44-02-05
- eClass 9.1
- 27-44-02-05
- ETIM 6.0
- EC000438
- ETIM 7.0
- EC000438
Connection Data
- Conductor cross-section, max.
- 4 mm²
- Conductor cross-section, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 20
Connection Data Pe
- Connection type PE
- Screw connection
- Stripping length PE connection
- 10 mm
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross-section, solid, max.
- 4 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Design
- Product family
- HDC insert
- Product type
- Insert
- Type
- Female
- Type of connection
- Crimp connection
Dimensions And Weights
- Depth
- 84.3 mm
- Depth (inches)
- 3.319 inch
- Height
- 37 mm
- Height (inches)
- 1.457 inch
- Net weight
- 74 g
- Width
- 34 mm
- Width (inches)
- 1.339 inch
General Data
- Insulating material
- PC
- Insulation strength
- 1010 Ω
- Number of poles
- 40
- Plugging cycles, gold
- ≥ 500
- Plugging cycles, silver
- ≥ 500
- Pollution severity
- 3
- Rated current (DIN EN 61984)
- 16 A
- Rated impulse voltage (DIN EN 61984)
- 6 kV
- Rated voltage according to UL/CSA
- 600 V AC/DC
- Rated voltage (DIN EN 61984)
- 500 V
- Series
- HEEE
- Size
- 6
- Type
- Female
- UL 94 flammability rating
- V-0
- Volume resistance
- ≤ 2mΩ
General Descriptions
- Number of poles
- 40
- Size
- 6
Material
- Insulating material
- PC
- UL 94 flammability rating
- V-0
Temperatures
- Limit temperature
- -40 °C ... 125 °C
Version
- Conductor cross-section, max.
- 4 mm²
- Conductor cross-section, min.
- 0.5 mm²
- Size
- 6
- Stripping length, rated connection
- 7.5 mm
- Type of connection
- Crimp connection
- Volume resistance
- ≤ 2mΩ
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 20
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross-section, solid, max.
- 4 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
