Weidmuller 1519520000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

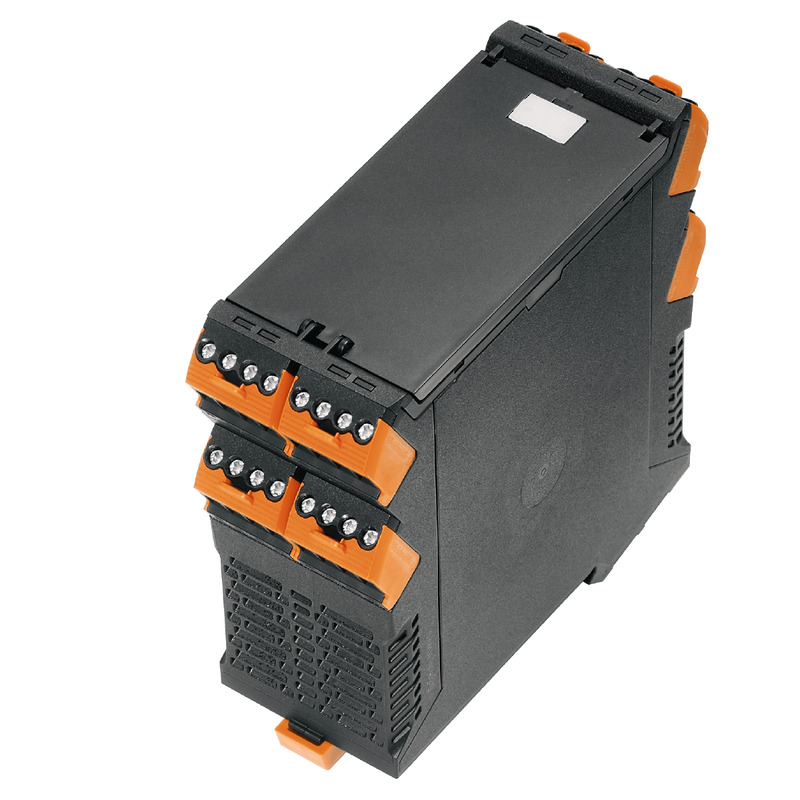

Electronics housing sample, OMNIMATE Housing - series CH20M black, Width: 45 mmCH20M45 SET 33/33 BK/OR
Weidmuller 1519520000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-02
- eClass 9.0
- 27-18-27-02
- eClass 9.1
- 27-18-27-92
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
Dimensions And Weights
- Height
- 113.6 mm
- Height (inches)
- 4.472 inch
- Length
- 119.2 mm
- Length (inches)
- 4.693 inch
- Net weight
- 240 g
- Width
- 45 mm
- Width (inches)
- 1.772 inch
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 550
- Insulating material
- PA 66 GF 30
- Insulating material group
- II
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Operating temperature, min.
- -40 °C
- UL 94 flammability rating
- V-0
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 9 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
- Rated voltage for surge voltage class / pollution degree II/2
- 400 V
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
System Characteristics
- Contact to terminal rail
- No
- Encapsulation option
- No
- Number of connection levels
- 3
- Number of connections
- 48
- Number of PCBs per module
- 2
- PCB thickness
- 1.6 mm
- Protection degree
- IP20
- Tolerance for the PCB shape
- ±0.1 mm
- Type of connection
- pluggable
- Type of contact to PCB
- Solder connection, direct
