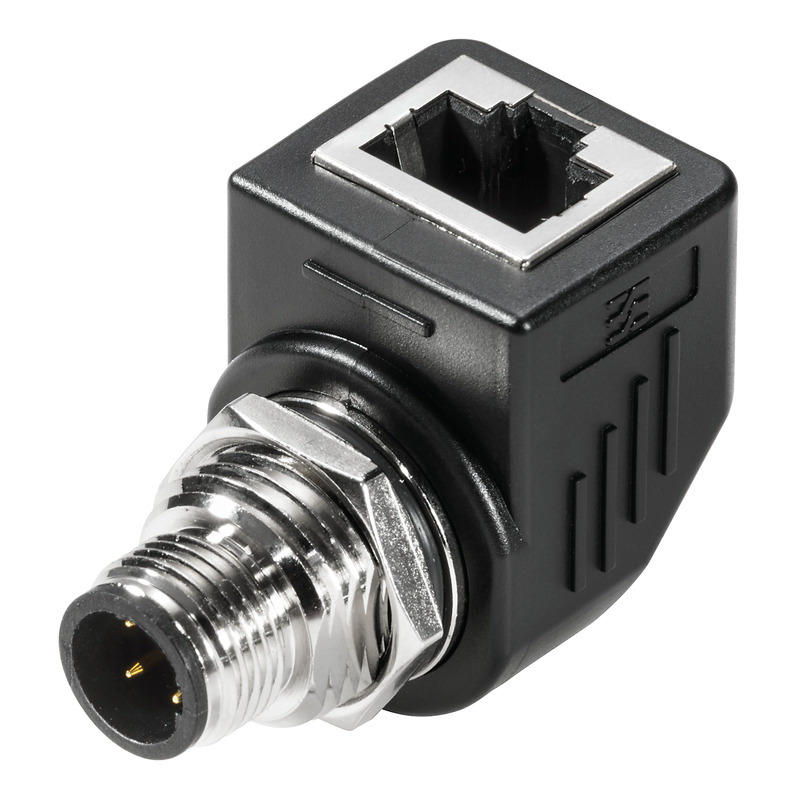

Weidmuller 1514940000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1514940000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 10.0
- 27-44-03-20
- eClass 9.0
- 27-44-03-20
- eClass 9.1
- 19-17-01-25
- ETIM 6.0
- EC000313
- ETIM 7.0
- EC000313
- UNSPSC
- 30-21-18-14
Dimensions And Weights
- Net weight
- 35 g
Electrical Properties
- Contact resistance
- ≤ 10 mΩ
- Current-carrying capacity at 50 °C
- 1 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Info
- Category
- Cat.5 (ISO/IEC 11801)
- Configuration
- M12 pin on RJ45 socket
- Connection 1
- RJ45 90°
- Connection 2
- M12
- Connection thread
- M12
- Contact surface
- Gold-plated
- Description of article
- Adapter, angled
- Housing main material
- PA 66
- Protection degree
- IP67
- Shielding
- Yes
Standards
- Certificate no. (cULus)
- E471884
- Connector standard
- IEC 60603-7-5, IEC 61076-2-101
Temperatures
- Operating temperature
- -25 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
