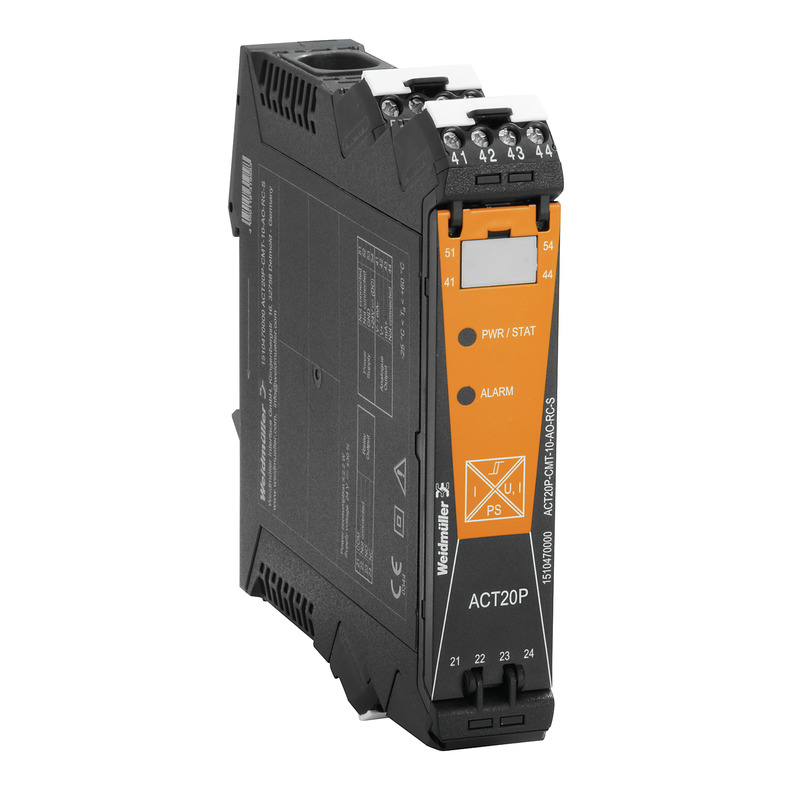

Weidmuller 1510440000

Approvals

• Approvals
  • CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-23
• eClass 9.0
  • 27-21-01-23
• eClass 9.1
  • 27-21-01-23
• ETIM 6.0
  • EC002475
• ETIM 7.0
  • EC002475

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 119.2 mm
• Height (inches)
  • 4.693 inch
• Net weight
  • 158 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.75 % FSR, < 1.5 % FSR with measurement range 50/60 A AC
• Configuration
  • DIP switch and potentiometer
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Power consumption, max.
  • 2.2 W
• Rail
  • TS 35
• Step response time
  • ≤ 300 ms (RMS), ≤ 60 ms (AA)
• Temperature coefficient
  • 0.01%/K @ 0...40 A, 0.10%/K @ 40...55 A, 0.30%/K @ 55...60 A
• Voltage supply
  • 16,8 V…31,2 V

Input

• Input frequency
  • AC: 15…700 Hz (true root mean square), AC: 50 Hz (arithmetic average)
• Input measurement range
  • configurable, 0…40/50/60 A AC or DC
• Input signal
  • Current-carrying cable in feed-through hole, Diameter 10.5 mm
• Number of inputs
  • 1

Insulation Coordination

• EMC standards
  • IEC 61326-1, IEC 61010-2-201
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Impulse withstand voltage
  • 6.4 kV (1.2/50 µs)
• Insulation voltage
  • 4 kVeff / 1 min.
• Pollution severity
  • 2
• Rated voltage
  • 300 V ACrms
• Surge voltage category
  • III

Output (Analogue)

• Load resistance current
  • ≤ 600 Ω
• Load resistance voltage
  • ≥ 10 kΩ
• Output current
  • Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
• Output voltage
  • Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
• Type (analogue output)
  • Voltage and current output (configurable)

Output (Digital)

• Alarm function
  • Surge current, Under-current, Alarm delay: 0...10 s, Hysteresis 5% / 10%
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 24 V
• Number of digital outputs
  • 1
• Rated switching current
  • 6 A
• Type
  • Relay, 1 CO contact, normal / inverse adjustment

Probability Of Failure

• MTTF
  • 158 Years

Product Information

• Product information
  • The ACT20P-CMT-XX-(AO)-RC-S series of devices measure and monitor AC and DC currents of up to 60 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output.. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Humidity
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
