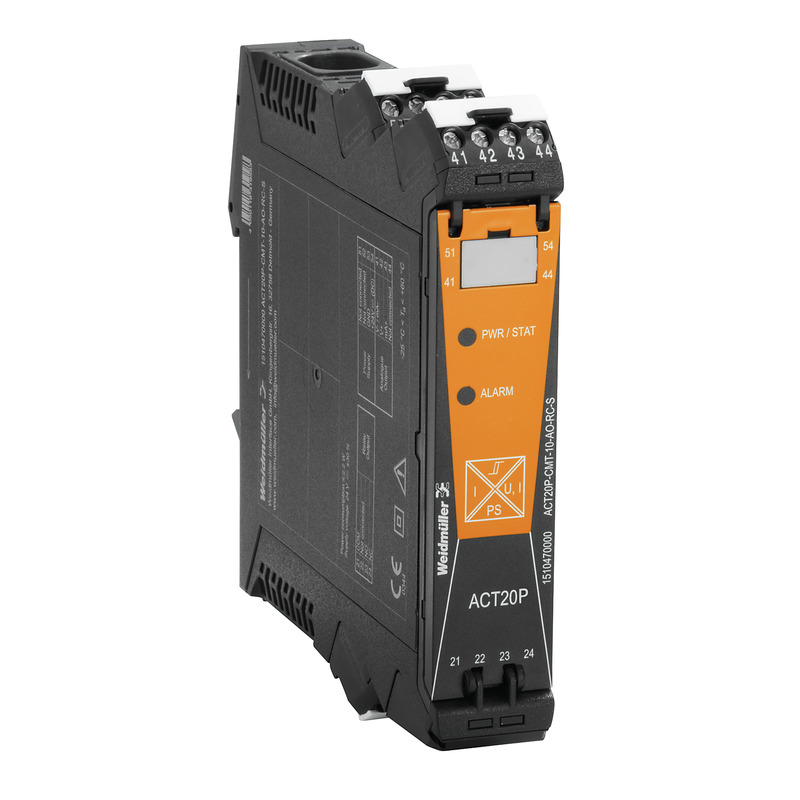

Weidmuller 1510420000

Approvals

• Approvals
  • CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-23
• eClass 9.0
  • 27-21-01-23
• eClass 9.1
  • 27-21-01-23
• ETIM 6.0
  • EC002475
• ETIM 7.0
  • EC002475

Communication

• Configuration
  • With FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches
• Interface
  • Communication via CH20M rail bus with gateway (ACT20C-GTW-100-MTCP-S)

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 3.5 Lb In
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 117.2 mm
• Height (inches)
  • 4.614 inch
• Net weight
  • 154 g
• Weight
  • 180 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.75 % FSR, < 1.5 % FSR with measurement range 50/60 A AC
• Configuration
  • With FDT/DTM software, via gateway (ACT20C-GTW-100-MTCP-S), Addressing via DIP switches
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Power consumption, max.
  • 2.2 W
• Rail
  • TS 35
• Step response time
  • < 300 ms
• Temperature coefficient
  • typ. 0.04 % / K, max. 0.09 % / K
• Voltage supply
  • via the system bus

Input

• Input frequency
  • AC: 15…700 Hz
• Input measurement range
  • configurable, 0…40/50/60 A AC (RMS) or DC
• Input signal
  • Current-carrying cable in feed-through hole, Diameter 10.5 mm

Insulation Coordination

• EMC standards
  • IEC 61326-1
• Galvanic isolation
  • 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Impulse withstand voltage
  • 6.4 kV (1.2/50 µs)
• Pollution severity
  • 2
• Rated voltage
  • 300 V ACrms
• Surge voltage category
  • III

Output (Analogue)

• Load resistance current
  • ≤ 600 Ω
• Load resistance voltage
  • ≥ 10 kΩ
• Output current
  • Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
• Output voltage
  • Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
• Type (analogue output)
  • Voltage and current output (configurable)

Output (Digital)

• Max. switching voltage, AC
  • 250 V
• Rated switching current
  • 6 A
• Type
  • Relay, 1 CO contact, Process alarms (4x) with hysteresis, with alarm delay (configurable) 0…180 s

Probability Of Failure

• MTTF
  • 130 Years

Product Information

• Product information
  • The ACT20C-CMT-XX-AO-RC-S current measuring transducers from the ACT20C series measure and monitor DC and AC currents of up to 60 A. The True RMS method used allows for precise measurement, even in case of distorted current waveforms. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output. Properties True RMS value measurement or arithmetic averaging (AA) measurement and contactless through-hole technologyLimit value monitoring for overcurrent or undercurrentRelay output by means of the open-circuit / closed-circuit principleInfinitely variable trigger delayOperational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201:2013

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Ambient temperature
  • -25 °C...+60 °C
• Humidity
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
