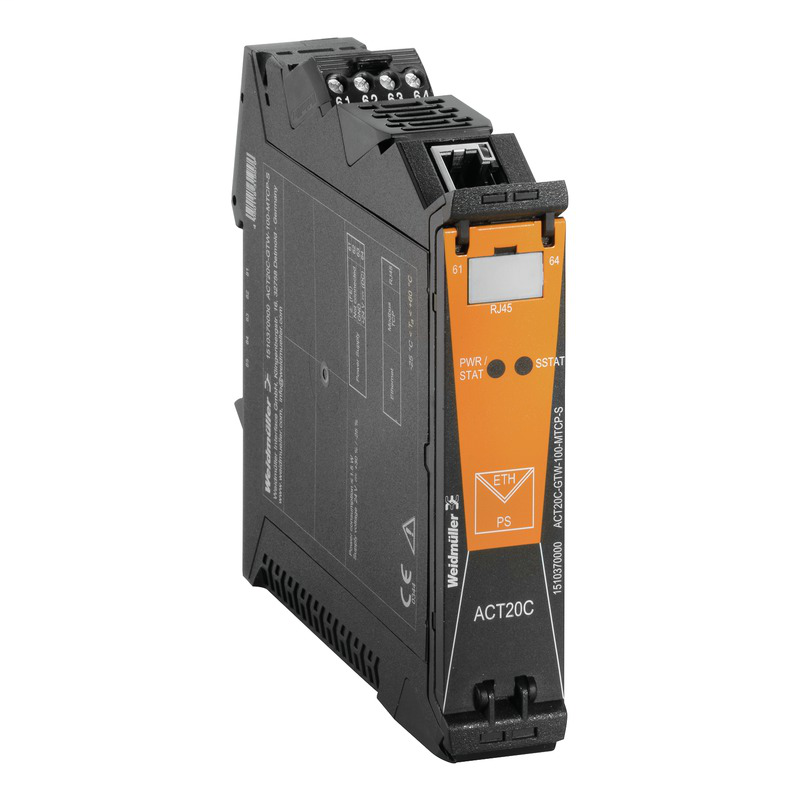

Weidmuller 1510370000

Approvals

• Approvals
  • CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-23
• eClass 9.0
  • 27-21-01-23
• eClass 9.1
  • 27-21-01-23
• ETIM 6.0
  • EC002475
• ETIM 7.0
  • EC002475

Communication

• Addressing
  • DHCP or manual adjustment
• Configuration
  • With FDT/DTM software, DHCP
• Interface
  • Ethernet 10/100 Base T, Jack plug for CBX200, Communication via CH20M rail bus with all current measuring transducers (ACT20C-CMT-x)
• Protocol
  • Modbus/TCP, DHCP Server/Client
• RJ45 ports
  • 10/100BaseT(X), auto negotiation

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 3.5 Lb In
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection, RJ45 plug-in connector
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 117.2 mm
• Height (inches)
  • 4.614 inch
• Net weight
  • 150 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Configuration
  • With FDT/DTM software, DHCP
• Power consumption, max.
  • 1.5 W
• Rail
  • TS 35
• Voltage supply
  • 18.0 … 31.2 V DC

Input

• Type
  • receives data via the CH20M rail bus from several ACT20C-CMT communicative current-measuring transducers

Insulation Coordination

• EMC standards
  • IEC 61326-1
• Impulse withstand voltage
  • 0,5 kV (1.2/50 μs)
• Pollution severity
  • 2
• Rated voltage ⁄ test voltage: Ethernet interface to supply ⁄ functional earth to supply ⁄ Ethernet interface
  • 30 V AC RMS
• Surge voltage category
  • II

Probability Of Failure

• MTTF
  • 160 Years

Product Information

• Product information
  • The ACT20C-GTW-100-MTCP-S gateway is a modbus TCP slave in accordance with IEC 61158. It connects ACT20C devices to an Ethernet network for diagnostic, configuration and status monitoring purposes. Properties RJ45 port with Ethernet TCP/IP Jack socket for direct point-to-point communication via a CBX200 USB adapter Configuration using the standard FDT/DTM Station management with “Plug & Produce” and “Hot Swapping” Operational status and error display on a front panel LED according to NE44, NE107

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Ambient temperature
  • -25 °C...+60 °C
• Humidity
  • 5...95 %, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
