Description

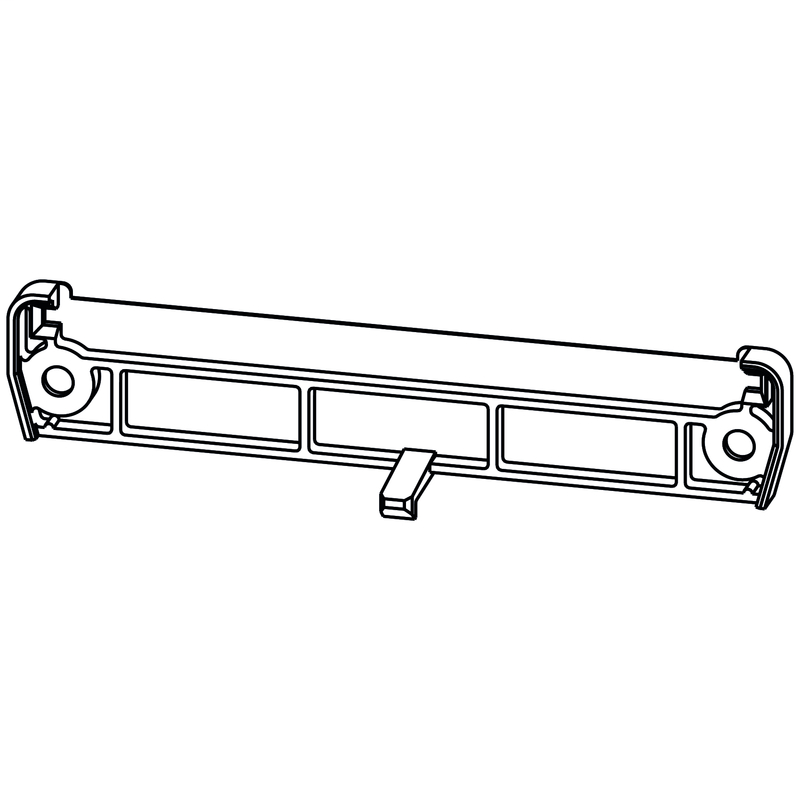

Electronics housings, RS 90 Pale green, End plate, Width: 5 mmAP 90 GN 2043
Weidmuller 1504790000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
Dimensions And Weights
- Height
- 16.9 mm
- Height (inches)
- 0.665 inch
- Length
- 84.4 mm
- Length (inches)
- 3.323 inch
- Net weight
- 2.4 g
- Width
- 5 mm
- Width (inches)
- 0.197 inch
Material Data
- Colour
- Pale green
- Colour chart (similar)
- RAL 6021
- Comparative Tracking Index (CTI)
- ≥ 600
- Insulating material
- PA 66
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 100 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-2
Notes
- Descriptive text technical data
- Dimensions of the PCB:Thickness: 1.6 (± 0.2) mm, width: 79.8 (+0.2) mmDimension of RS section = PCB length - 4.5 mmExample:PCB length 160 mm, RS section = 155.5 mm
System Characteristics
- Protection degree
- IP20
- Version
- End plate
