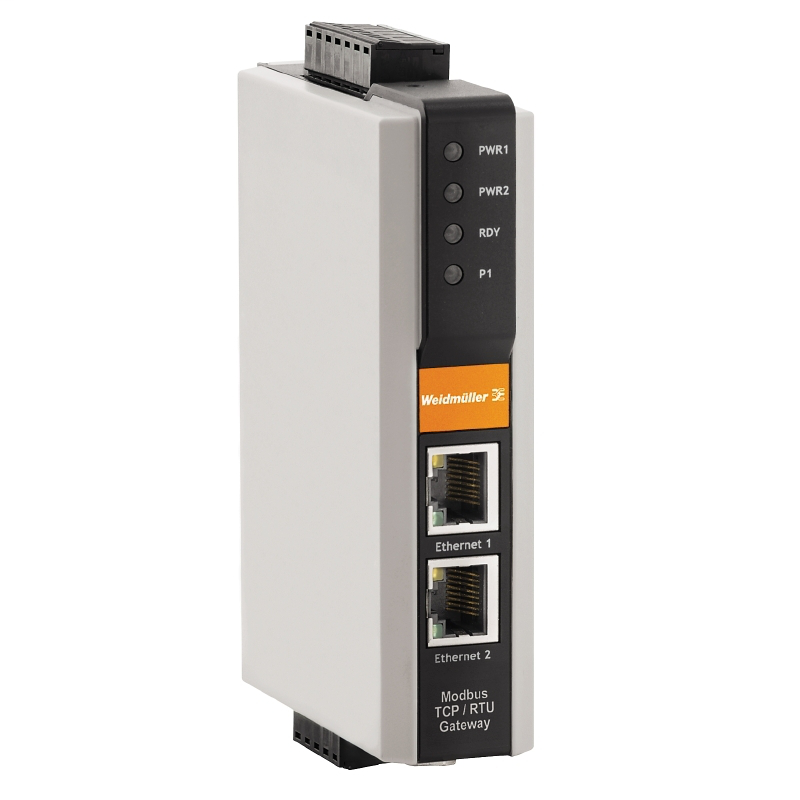

Weidmuller 1504470000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modbus TCP/Modbus Seriell Gateway, 2x RJ45, 1x DB9 for RS-232, 1x terminal block for RS-422/485, IP30, -40 °C...75 °CIE-GWT-MB-2TX-1RS232/485
Weidmuller 1504470000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, CULUSEX, EAC
- ROHS
- Conform
- UL File Number Search
- E230683
Classifications
- eClass 10.0
- 19-17-04-02
- eClass 9.0
- 19-17-01-06
- eClass 9.1
- 19-17-01-06
- ETIM 6.0
- EC000734
- ETIM 7.0
- EC000734
Dimensions And Weights
- Depth
- 89.2 mm
- Depth (inches)
- 3.512 inch
- Height
- 124.5 mm
- Height (inches)
- 4.902 inch
- Net weight
- 190 g
- Width
- 29 mm
- Width (inches)
- 1.142 inch
Emc Conformity And Approvals
- EMC standards
- FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), level 4, EN 61000-4-5 (Surge), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8, EN 61000-4-11
- Explosive risk zone
- UL/cUL, Class I, Division 2, Groups A, B, C and D
- Free fall
- According to IEC 60068-2-32
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 75 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Guarantee
- Time interval
- 5 years
Interfaces
- Ethernet ports
- 2
- Magnetic isolation protection
- 1.5 kV built-in
- RJ45 ports
- 10/100BaseT(X), Auto MDI/MDI-X port
- Serial port
- DB9 RS-232, Terminal block for RS-422/485
- Serial ports
- 1
Mtbf
- Database
- Telcordia (Bellcore), GB
- MTBF
- 210,794 hrs
Power Supply
- Connection type
- 1 removable 7-pole terminal block
- Current consumption
- 435 mA
- Supply voltage, max.
- 48 V DC
- Supply voltage, min.
- 12 V DC
- Voltage supply
- 24 V DC, 2 redundant inputs
Serial Communication Parameters
- Data bits
- 7, 8
- Flow control
- RTS/CTS and DTR/DSR (RS-232)
- Parity
- none, straight, odd, Space, Mark
- Stop bits
- 1, 2
Serial Interface
- Connection type
- 1 removable 7-pole terminal block
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- TxD+, TxD-, RxD+, RxD-, GND
- RS-485 2-wire
- Data+, Data-, GND
- RS-485 4-wire
- TxD+, TxD-, RxD+, RxD-, GND
Software
- Additional features
- Serial Redirection, Priority Control
- Configuration options
- Web console, serial console, Telnet console, Windows utility
- Configuration tool
- Modbus Gateway Administrator for Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64
- Multi-master and multi-drop
- Master Modus: 32 TCP slaves, Slave Modus: 16 TCP master
- Operating modes
- RTU Slave, RTU Master, ASCII Slave, ASCII Master
Technical Data
- Housing main material
- Plastic
- Protection degree
- IP30
- Type of mounting
- DIN rail
Technology
- Flow control
- RTS/CTS and DTR/DSR (RS-232)
